VEHICLE CARE

Fuses

Usage

F47

–

F48

TCM

–

Telematics

Control Module

F49

BCM 1

–

Body Control

Module 1

F50

–

F51

–

F52

–

F53

–

F54

Sunroof

F55

APO 3

–

Auxiliary

Power Outlet 3

F56

DC/DC CNV BATT 1

–

Direct Current/Direct
Current Converter
Battery 1

F57

DC/DC CNV BATT 2

–

Direct Current/Direct
Current Converter
Battery 2

F58

Spare

F59

–

Circuit

Breakers

Usage

CBO1

APO 1

–

Auxiliary

Power Outlet 1

CBO2

APO 2

–

Auxiliary

Power Outlet 2

Relays

Usage

K1

–

K2

RAP/ACCY 1

–

Retain

Accessory Power/
Accessory 1

K4

RAP/ACCY 2

–

Retain

Accessory Power/
Accessory 2

K5

–

Rear Compartment Fuse
Block

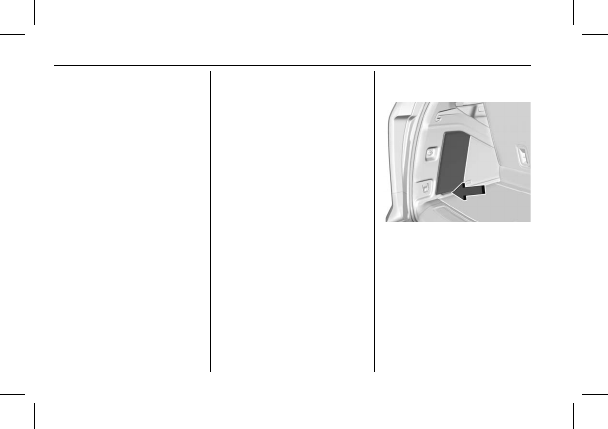

The rear compartment fuse block is
behind the access panel on the left
side of the compartment.

Pull the panel out by grabbing the
finger access slot at the rear edge.
