VEHICLE CARE

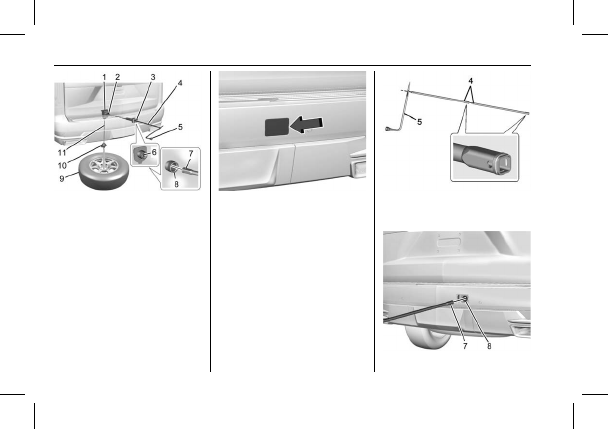

1. Hoist Assembly
2. Hoist Shaft
3. Hoist Shaft Access Cover/Hole
4. Jack Handle Extension
5. Wheel Wrench
6. Spare Tire Lock
7. Hoist End of Extension Tool
8. Hoist Shaft Access Hole
9. Spare Tire (Valve Stem
Pointed Up)
10.Tire/Wheel Retainer
11.Hoist Cable
1. Open the hoist shaft access
cover (3) on the bumper to access
the spare tire lock (6).
2. To remove the spare tire lock (6),
insert the mechanical key, turn it
clockwise and then pull it
straight out.
3. Assemble the jack handle
extensions (4) and wheel
wrench (5), as shown.
