Vehicle Care- Page 333
2022 Chevrolet suburban Owner Manual
Table of Contents
22_CHEV_Tahoe_Suburban_OM_en_US_U_84793869A_2021AUG09
Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-15555985) - 2022 - CRC - 8/3/21
332
Vehicle Care

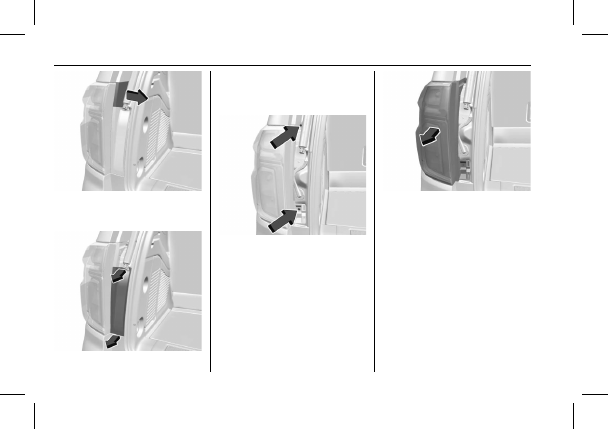

2. Remove the middle trim piece by pulling
towards the center of the vehicle to
disengage the clips.
3. Remove the lower taillamp closeout
cover from the taillamp assembly by
pulling rearward from the top and
bottom to disengage the clips.
4. Remove the two rear lamp assembly
screws.
5. Pull the rear lamp assembly rearward to
remove it from the vehicle.
6. Turn the bulb socket counterclockwise.
7. Pull the bulb straight out from the
socket.
8. Replace the bulb and reverse Steps 1
–
6
to reinstall.
Detailed Information for 2022 Chevrolet suburban Owner Manual
Lists of information found in 2022 Chevrolet suburban Owner Manual - Page 333
- 2. Remove the middle trim piece by pulling towards the center of the vehicle to disengage the clips.
- 3. Remove the lower taillamp closeout cover from the taillamp assembly by pulling rearward from the top and bottom to disengage the clips.
- 4. Remove the two rear lamp assembly screws.
- 5. Pull the rear lamp assembly rearward to remove it from the vehicle.
- 6. Turn the bulb socket counterclockwise.
- 7. Pull the bulb straight out from the socket.
- 8. Replace the bulb and reverse Steps 1 – 6 to reinstall.
