Headlamp bulb removal

Removing the high beam headlamp bulb

1.

Make sure that the headlamp switch is in the
OFF position.

2.

Lift the hood, remove the sight shield above
the headlamp and find the bulb in the
headlamp socket.

3.

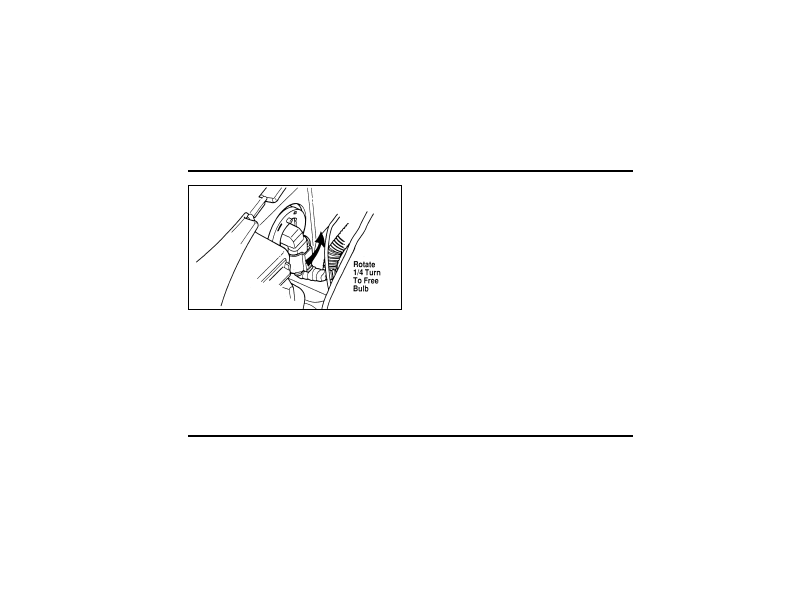

Remove the high beam dust cap by rotating
counterclockwise 1/4 turn. Pull back to
exposes wiring and connector.

4.

Remove the bulb connector by pulling rearward
to free it from the lamp assembly.

5.

Remove the electrical connector by pulling off
the bulb base.

Installing the high beam headlamp bulb

1.

Push the electrical connector into the rear of
the plastic base of the bulb until it snaps,
locking it into position.

2.

Insert the glass envelope of the bulb into the
lamp assembly socket while aligning the locking
tabs.

3.

Rotate the bulb 1/4 turn to lock.
