GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-71

Stopper Magnet Clutch (For A/C Compressor)

Application

• Use for loosen and tighten the magnet clutch mounting nut. (Use radius

C

).

NOTE

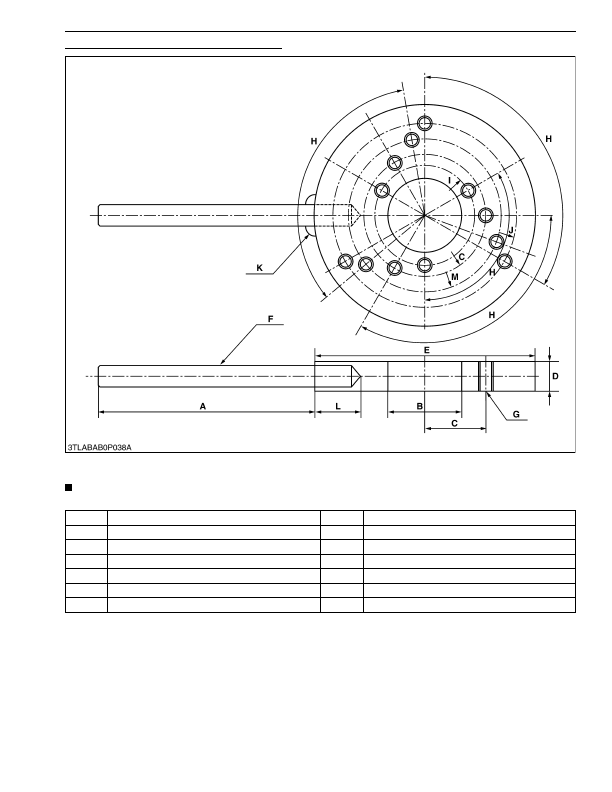

• This special tool is not available, so make it. Refer to the figure.

9Y1210824GEG0112US0

A

125 mm (4.92 in.)

H

4.52 rad (120 °)

B

40 mm dia. (1.57 in. dia.)

I

Radius 27 mm (Radius 1.06 in.)

C

Radius 33 mm (Radius 1.30 in.)

J

Radius 50 mm (Radius 1.97 in.)

D

16 mm (0.63 in.)

K

Weld all around

E

120 mm dia. (4.72 in. dia.)

L

20 mm (0.78 in.)

F

12 mm dia. (0.47 in. dia.)

M

Radius 41 mm (Radius 1.61 in.)

G

3 × M8 × 1.25 All screws

KiSC issued 03, 2016 A
