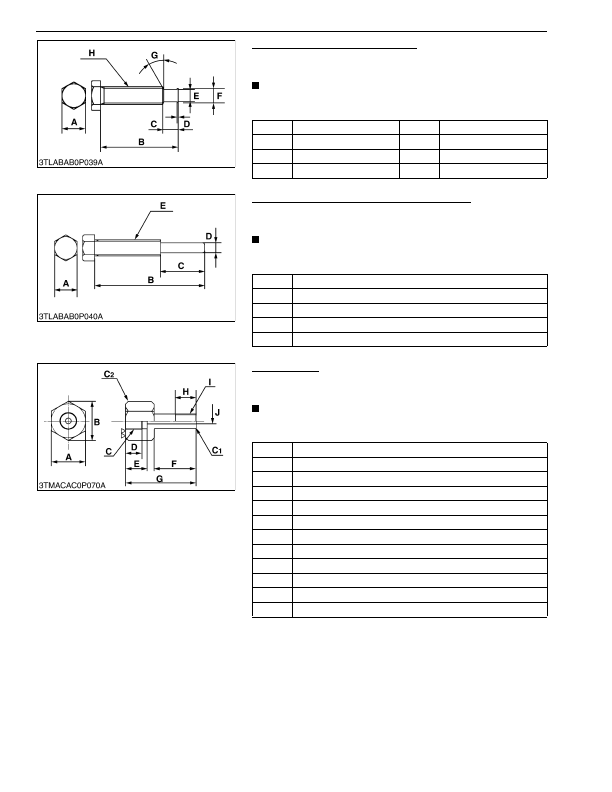

Stopper Bolt (for A/C Compressor)
Application

• Use with the stopper magnet clutch.

NOTE

• This special tool is not available, so make it. Refer to the

figure.

9Y1210824GEG0113US0

Remover Magnet Clutch (for A/C Compressor)
Application

• Use to remove the hub plate or center piece.

NOTE

• This special tool is not available, so make it. Refer to the

figure.

9Y1210824GEG0114US0

Valve Adaptor
Application

• Use for measuring the system pressure of shuttle valve.

NOTE

• The special tool is not available, so make it. Refer to the

figure.

9Y1210824GEG0115US0

A

12 mm (0.47 in.)

E

5.5 mm dia. (0.22 in. dia.)

B

35 mm (1.38 in.)

F

6.5 mm dia. (0.26 in. dia.)

C

7 mm (0.28 in.)

G

0.52 rad (30 °)

D

0.4 mm (0.016 in.)

H

M8 × P1.25

A

12 mm (0.47 in.)

B

55 mm (2.16 in.)

C

20 mm (0.79 in.)

D

5 mm dia. (0.20 in. dia.)

E

M8 × P1.25

A

24 mm (0.94 in.)

B

27.7 mm (1.09 in.)

C

PS1/4

D

11 mm (0.43 in.)

E

15 mm (0.59 in.)

F

40 mm (1.57 in.)

G

60 mm (2.36 in.)

H

15 mm (0.59 in.)

I

PT1/8

J

4 mm dia. (0.15 in. dia.)

C1

Chamfer 1 mm (0.039 in.)

C2

Chamfer 2 mm (0.079 in.)
