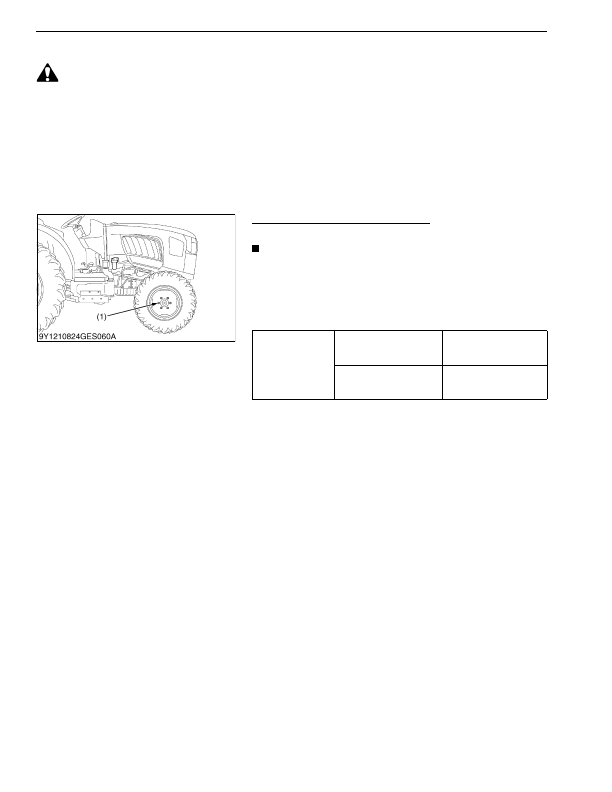

[2] WHEEL ADJUSTMENT; (1) Front Wheel; Front Wheels (with Four Wheel Drive)- Page 103

GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-74

[2] WHEEL ADJUSTMENT

 CAUTION

To avoid personal injury:

• When working on slopes or when working with trailer, set the wheel tread as wide as practical for

maximum stability.

• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be

accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.

• Never operate tractor with a loose rim, wheel, or axle.

9Y1210824GEG0119US0

(1) Front Wheel

Front Wheels (with Four Wheel Drive)

Front tread can not be adjusted.

IMPORTANT

• Do not turn front discs to obtain wider tread.
• When re-fitting or adjusting a wheel, tighten the bolts to the

following torques then recheck after driving the tractor 200
m (200 yards) and 10 times of shuttle movement by 5 m (5
yards), and thereafter according to service interval. (See
page G-24.)

9Y1210824GEG0120US0

Tightening torque

Front wheel mounting nut

(L3560, L4060, L4760)

137 N·m

14 kgf·m

100 lbf·ft

Front wheel mounting nut

(L5060, L5460, L6060)

185 N·m

19 kgf·m

136 lbf·ft

(1) Front Wheel Mounting Nut
