9 ELECTRICAL SYSTEM
background image

GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-75

NOTE

• Wheels with beveled or tapered holes: Use the tapered side

of lug nut.

NOTE

• IND: for industrial

9Y1210824GEG0121US0

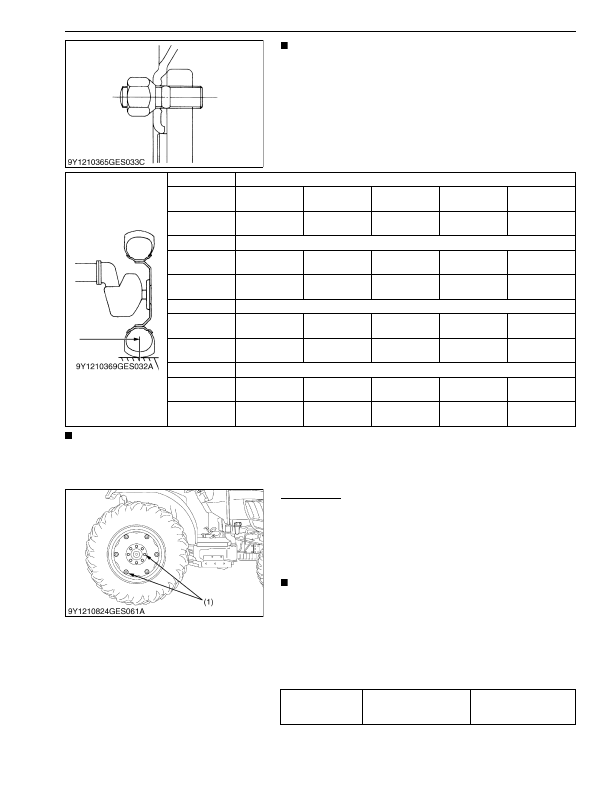

(2) Rear Wheel

Rear Wheels

Rear tread width can be adjusted as shown with the standard

equipped tires.

To change the tread width

1. Remove the wheel rim and / or disk mounting bolts.

2. Change the position of the rim and / or disk (right and left) to the

desired position, and tighten the bolts.

IMPORTANT

• Always attach wheels as shown in the drawings.
• If not attached as illustrated, transmission parts may be

damaged.

• When re-fitting or adjusting a wheel, tighten the bolts to the

following torques then recheck after driving the tractor 200
m (200 yards) and 10 times of shuttle movement by 5 m (5
yards), and thereafter according to service interval. (See
page G-24.)

9Y1210824GEG0122US0

Models

L3560

Tire

7-16, 7.2-16

Farm

27 × 8.50-15

Turf

27 × 10.50-15

Turf

29 × 12.50-15

Turf

10-16.5

IND

Tread

1115 mm

(45.5 in.)

1200 mm

(47.2 in.)

1230 mm

(48.4 in.)

1170 mm

(46.1 in.)

1195 mm

(47.0 in.)

Models

L4060

Tire

8-16, 8.3-16

Farm

27 × 8.50-15

Turf

27 × 10.50-15

Turf

29 × 12.50-15

Turf

10-16.5

IND

Tread

1155 mm

(45.5 in.)

1200 mm

(47.2 in.)

1230 mm

(48.4 in.)

1170 mm

(46.1 in.)

1195 mm

(47.0 in.)

Models

L4760

Tire

8-16, 8.3-16

Farm

27 × 10.50-15

Turf

29 × 12.50-15

Turf

305R343

Turf

10-16.5

IND

Tread

1300 mm

(51.2 in.)

1375 mm

(54.1 in.)

1425 mm

(56.1 in.)

1455 mm

(57.3 in.)

1340 mm

(52.8 in.)

Models

L5060, L5460, L6060

Tire

9.5-16

Farm

27 × 10.50-15

Turf

29 × 12.50-15

Turf

305R343

Turf

10-16.5

IND

Tread

1340 mm

(52.8 in.)

1375 mm

(54.1 in.)

1425 mm

(56.1 in.)

1455 mm

(57.3 in.)

1340 mm

(52.8 in.)

Tightening torque

Rear wheel mounting

screws and nut

215 N·m

22 kgf·m

160 lbf·ft

(1) Rear Wheel Mounting Screws and

Nut
