GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-78

Injection

 CAUTION

• When a calcium chloride solution is used, cool it before

pouring it into the tire.

• Do not fill tires with water or solution more than 75 % of full

capacity (to the valve stem level).

The following four ways can be used to inject water or a calcium

chloride solution into tires.

1. Gravity injection

"A"

2. Pump injection

"B"

3. Pressure tank injection

"C"

4. Injection directly from tap (only when water is being used).

NOTE

• Once injection is completed, reset the air valve, and pump

air into the tire to the specified pressure.

Weight  of  Calcium  Chloride  Solution  Filling  75  %  of  Full

Capacity of a Tire.

9Y1210824GEG0127US0

Tire sizes

12.4-24

420/70-24

14.9-24

Slush free at −10 °C (14 °F)

Solid at −30 °C (−22 °F)

[Approx. 1 kg (2 lbs) CaCl

2

 per

4 L (1 gal) of water]

130 kg

(285 lbs)

195 kg

(430 lbs)

205 kg

(450 lbs)

Slush free at −24 °C (−11 °F)

Solid at −47 °C (−53 °F)

[Approx. 1.5 kg (3.5 lbs) CaCl

2



per 4 L (1 gal) of water]

135 kg

(295 lbs)

205 kg

(450 lbs)

215 kg

(475 lbs)

Slush free at −47 °C (−53 °F)

Solid at −52 °C (−62 °F)

[Approx. 2.25 kg (5 lbs) CaCl

2



per 4 L (1 gal) of water]

145 kg

(320 lbs)

220 kg

(485 lbs)

225 kg

(495 lbs)

Tire sizes

17.5L-24

14.9-26

13.6-28

Slush free at −10 °C (14 °F)

Solid at −30 °C (−22 °F)

[Approx. 1 kg (2 lbs) CaCl

2

 per

4 L (1 gal) of water]

235 kg

(515 lbs)

215 kg

(475 lbs)

185 kg

(405 lbs)

Slush free at −24 °C (−11 °F)

Solid at −47 °C (−53 °F)

[Approx. 1.5 kg (3.5 lbs) CaCl

2



per 4 L (1 gal) of water]

250 kg

(550 lbs)

225 kg

(495 lbs)

200 kg

(441 lbs)

Slush free at −47 °C (−53 °F)

Solid at −52 °C (−62 °F)

[Approx. 2.25 kg (5 lbs) CaCl

2



per 4 L (1 gal) of water]

265 kg

(585 lbs)

235 kg

(515 lbs)

215 kg

(475 lbs)

(1) Pump

(2) Pressure Tank

(3) Compressor

(4) Air

(5) Water

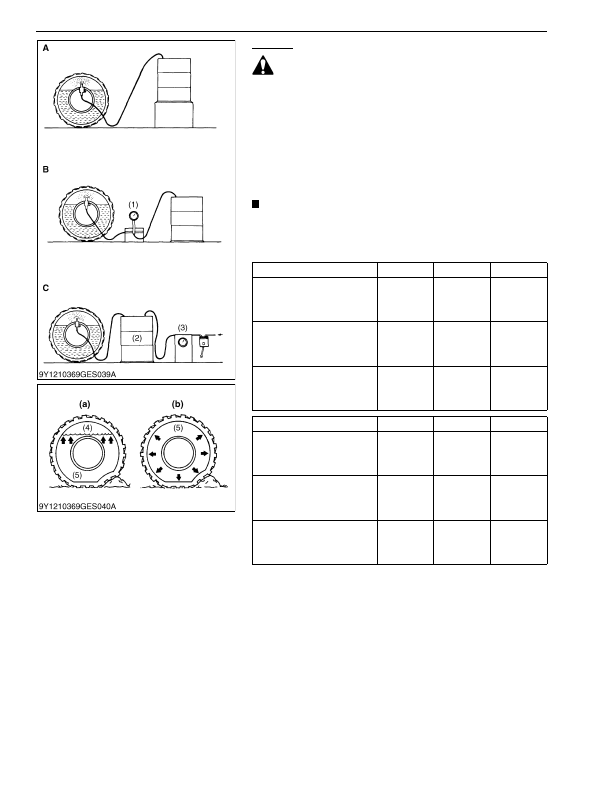

A: Gravity Injection
B: Pump Injection
C: Pressure Tank Injection
(a) Correct: 75 %

Air Compresses Like A Cushion

(b) Incorrect: 100 % Full

Water Can Not Be Compressed
