background image

ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-M3

3. LUBRICATING SYSTEM

[1] OIL COOLER

The engine is equipped with a water-cooled oil

cooler to keep the temperature of the oil from rising while

the engine is operating and provide it with proper

lubrication.

The oil flows on the inside of the cooler plate and is

cooled by the coolant flowing on the outside of the plate.

9Y1210824ENM0050US0

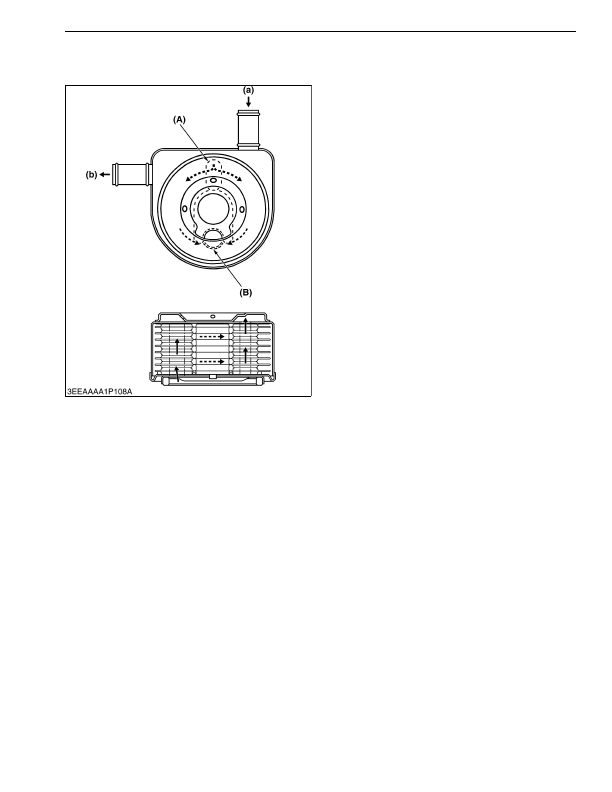

(A) Oil Inlet
(B) Oil Outlet

(a) Coolant Inlet
(b) Coolant Outlet

KiSC issued 03, 2016 A
