4. COOLING SYSTEM

[1] THERMOSTAT

This  thermostat  uses  a  wax-pellet  type.  When

temperature goes up, wax (6) in metal container (pellet

(5)) changes to a liquid from a solid.

The volume of the wax (6) starts to expand in this

process. As spindle (4) is fixed, pellet (5) goes down and

valve (2) goes down.

There is a jiggle valve (1) on the top depending on

the specification.

When  you  put  coolant  and  thermostat  is  closed,

coolant can not go in easily because air at the engine

side can not go out.

The jiggle valve helps to remove air from this hole,

and then coolant can go in easily.

9Y1210824ENM0051US0

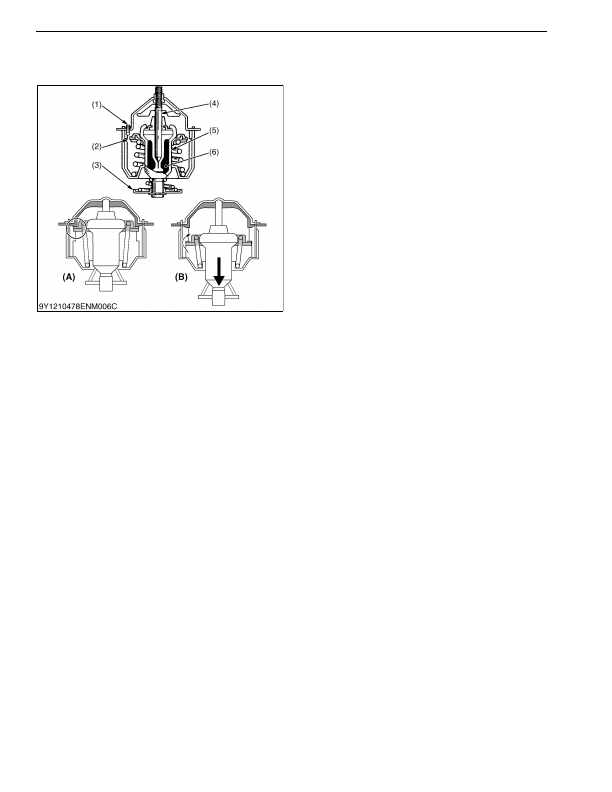

(1) Jiggle Valve

(2) Valve

(3) Bypass Valve

(4) Spindle

(5) Pellet

(6) Wax

(A) When The Valve is Closed
(B) When The Valve is Opened
