ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-M7

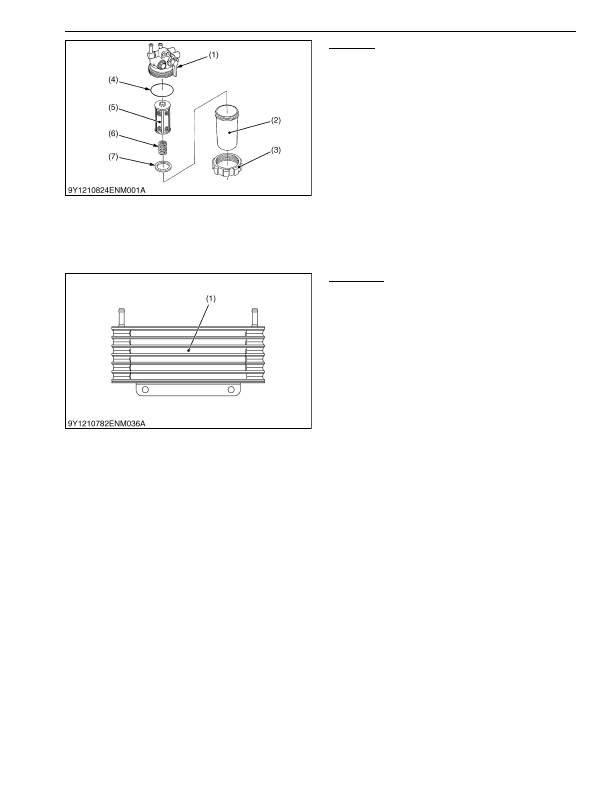

Separator

The separator has a function of separating fuel and

water through difference in specific gravity. There is a

read  float  (7)  with  a  specific  weight  of  0.9  made  of  a

polypropylene material inside that has properties in that

it is heavier than diesel and lighter than water.

When  fuel  containing  water  enters  the  separator,

water with a high specific weight pools in the bottom of a

cup (2) and causes the float to float. The state of mixing

in of water can be recognized by the state of the float and

can be visually inspected externally.

Fuel with a low specific weight flows over the top of

the  cup  but  passes  through  the  element  (5)  provided

inside enabling filth to be removed from the fuel.

9Y1210824ENM0009US0

Fuel Cooler

The  fuel  cooler  (1)  is  set  downstream  of  the

separator and is used to cool the fuel.

When  the  pressure  of  fuel  is  increased,  the

temperature  also  rises.  The  fuel  in  the  common  rail

system is raised to high pressure so the fuel temperature

also rises. If the fuel temperature rises too much, output

and durability are reduced. A fuel cooler that suppresses

fuel temperature rise is provided to prevent this.

9Y1210824ENM0010US0

(1) Fuel Valve

(2) Cup

(3) Retainer Ring

(4) O-ring

(5) Element

(6) Spring

(7) Red Float

(1) Fuel Cooler

KiSC issued 03, 2016 A
