L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-M8

Feed Pump

The feed pump (1) is installed after the fuel cooler

and has a function of suctioning fuel from the fuel tank

and pressure feeding it through a filter and to the supply

pump.

Also, the feed pump is provided with a priming pump

(2).  This  is  for  air  removal  through  the  supply  pump

through manual operation of the priming pump.

Operating

During the up stroke, the piston (5) is pushed up by

the fuel cam (8) via the tappet (7) and push rod (13). As

a result, the pressure in the inner chamber (9) rises, the

suction side check  valve  (3) closes and the  discharge

side  check  valve  (10)  opens.  On  the  other  hand,  the

pressure  in  the  outer  chamber  (12)  is  lowered  so  the

suction side check valve (6) opens and discharge side

check valve (11) closes.

During the down stroke the piston is lowered by a

piston spring (4) and the pressure in the inner chamber

is lowered so the suction side check valve opens and

discharge side check valve closes. On the other hand,

the pressure in the outer chamber rises so the suction

side check valve closes and discharge side check valve

opens.

9Y1210824ENM0011US0

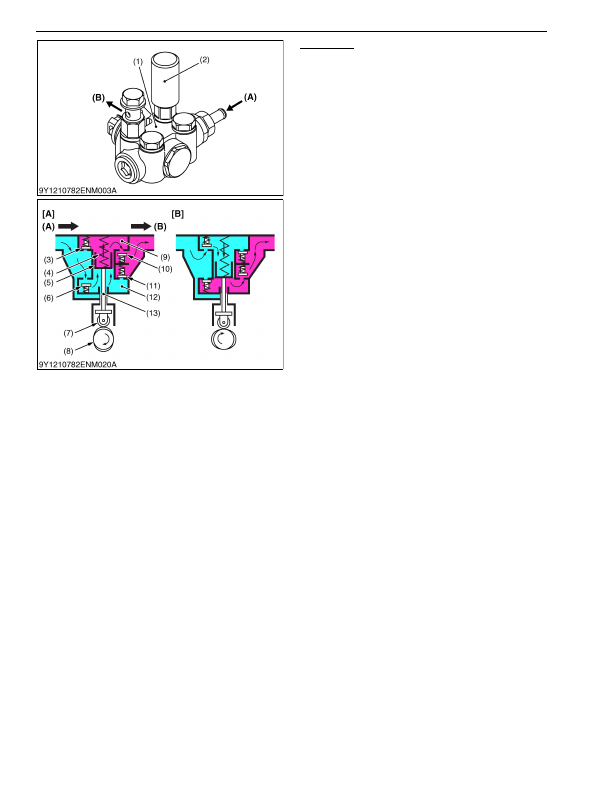

(1) Feed Pump

(2) Supply Pump

(3) Suction Side Check Valve

(4) Piston Spring

(5) Piston

(6) Suction Side Check Valve

(7) Tappet

(8) Fuel Cam

(9) Inner Chamber

(10) Discharge Side Check Valve

(11) Discharge Side Check Valve

(12) Outer Chamber

(13) Push Rod

(A)  Suction Side
(B)  Discharge Side
[A]  Up Stroke
[B]  Down Stroke
