ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-M9

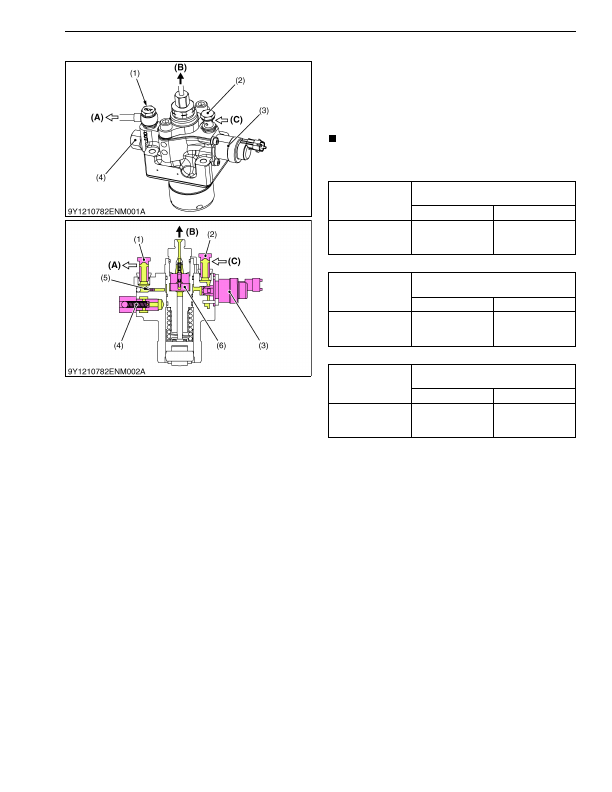

[2] SUPPLY PUMP

The  supply  pump  corresponds  to  conventional

injection pumps but pressurizes the fuel to more than 2

times that of conventional pumps for delivery to the rail.

The supply pump is made up of an intake adjustment

valve (SCV) (3), pressurizing part, overflow valve (4), IO

valve (6), and zero delivery drain (5).

NOTE

• Rail pressure changes based on engine model

and engine conditions.

[D1803-CR-E4]

[V2403-CR-E4]

[V2403-CR-TE4]

9Y1210824ENM0012US0

Supply Pump Type

Rail pressure reference values MPa

(kgf/cm

2

)

At Idling

At Rated Speed

PF49

25 to 30 MPa

260 to 300 kgf/cm

2

3700 to 4300 psi

65 to 70 MPa

663 to 713 kgf/cm

2

9500 to 10000 psi

Supply Pump Type

Rail pressure reference values MPa

(kgf/cm

2

)

At Idling

At Rated Speed

PF49

25 to 30 MPa

260 to 300 kgf/cm

2

3700 to 4300 psi

65 to 70 MPa

663 to 713 kgf/cm

2

9500 to 10000 psi

Supply Pump Type

Rail pressure reference values MPa

(kgf/cm

2

)

At Idling

At Rated Speed

PF49

25 to 30 MPa

260 to 300 kgf/cm

2

3700 to 4300 psi

65 to 70 MPa

663 to 713 kgf/cm

2

9500 to 10000 psi

(1) Eye Bolt (out)

(2) Eye Bolt (in)

(3) Suction Control Valve (SCV)

(4) Overflow Valve

(5) Zero Delivery Drain

(6) IO Valve

(A)  To fuel tank
(B)  To rail
(C)  From fuel filter

KiSC issued 03, 2016 A
