[5] ENGINE CONTROL SYSTEM- Page 132

ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-M17

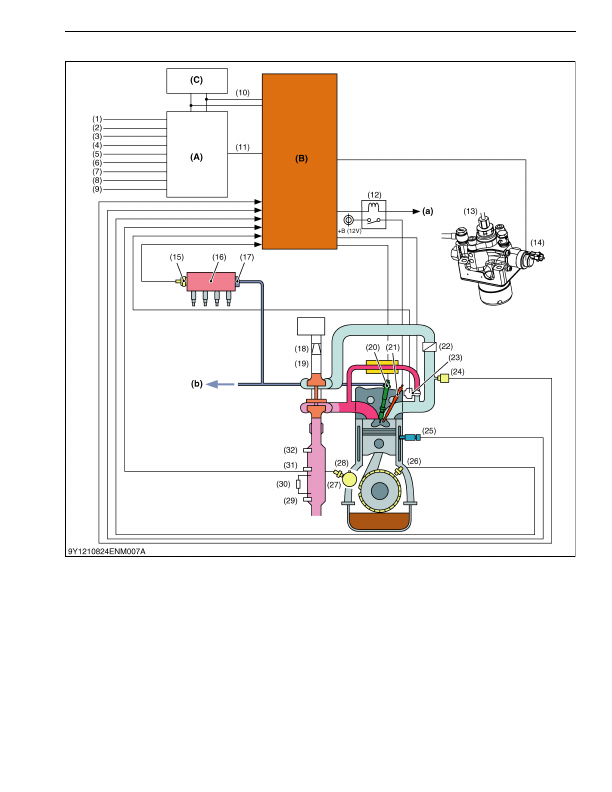

[5] ENGINE CONTROL SYSTEM

9Y1210824ENM0028US0

(1) Main Switch ON Signal

(2) Starter Switch Signal

(3) Hand Throttle Sensor

(4) Foot Throttle Sensor

(5) Oil Pressure Switch

(6) Traveling Speed Sensor

(7) Auto Regeneration Switch

(8) Parked Regeneration Switch

(9) Starter Relay

(10) CAN Communication

(11) OPC Switch Signal

(12) Glow Relay

(13) Supply Pump

(14) SCV (Suction Control Valve)

(15) Rail Pressure Sensor

(16) Rail

(17) Rail Pressure Limiter

(18) Air Flow Sensor

(19) Turbocharger

(20) Injector

(21) Glow Plug

(22) Intake Throttle Valve

(23) EGR Valve

(Motor, Lift Sensor)

(24) Intake Air Pressure Sensor

(25) Coolant Temperature Sensor

(26) Crankshaft Position Sensor

(27) Diesel Particulate Filter

(Hereinafter Referred To As

The "DPF") Muffler

(28) Camshaft Position Sensor

(29) Temperature Sensor (DPF

Outlet Exhaust Temperature)

(T

2

)

(30) Differential Pressure Sensor

(DPF Differential Pressure)

(ΔP)

(31) Temperature Sensor

(DPF Inlet Exhaust

Temperature) (T

1

)

(32) Temperature Sensor (DOC

Inlet Exhaust Temperature)

(T

0

)

(A) Main ECU
(B) Engine ECU
(C) Instrument Panel
(a) From Main Switch
(b) To Fuel Tank

KiSC issued 03, 2016 A
