ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-M21

6. EGR SYSTEM

[1] OVERVIEW

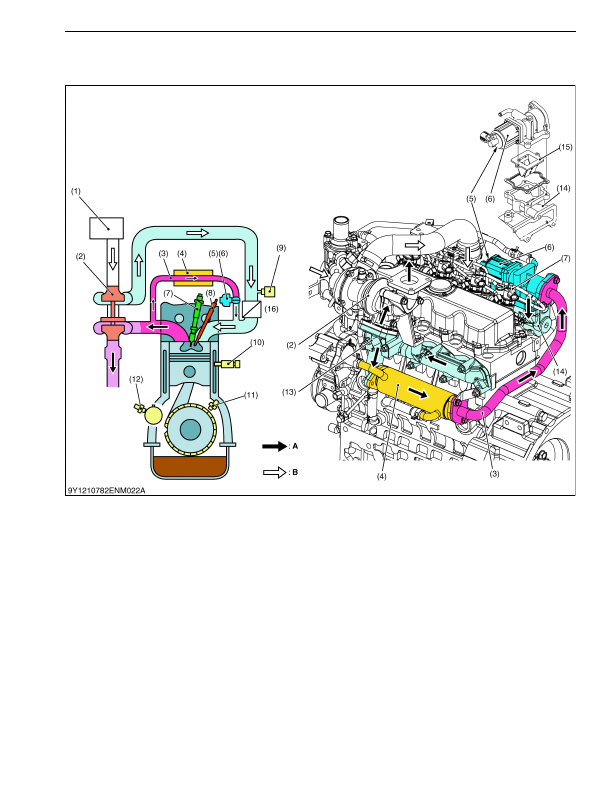

The EGR (Exhaust Gas Recirculation) system is a device that captures a part of the exhaust gas and returns it

to  the  intake  side  reducing  the  amount  of  oxygen  entering  the  engine  and  lowers  combustion  temperature

suppressing generation of nitrogen oxides (NOx).

The EGR being used on this engine is electronic and is made up of an EGR cooler (4), EGR lift sensor (5), EGR

valve motor (6), and reed valve (15).

The exhaust gas that is returned to the intake side (hereafter EGR gas) is cooled in the EGR cooler (4), adjusted

to a suitable flow by an EGR valve motor that is controlled by the engine ECU, and is sent to the intake manifold (14).

The reed valve prevents reverse flow of air from the air cleaner (1) to the EGR valve motor (6).

9Y1210824ENM0035US0

(1) Air Cleaner

(2) Turbocharger

(3) EGR Pipe

(4) EGR Cooler

(5) EGR Lift Sensor

(6) EGR Valve Motor

(7) Injector

(8) Glow Plug

(9) Boost Sensor

(10) Coolant Temperature Sensor

(11) Crankshaft Position Sensor

(12) Camshaft Position Sensor

(13) Exhaust-manifold

(14) Intake-manifold

(15) Reed Valve

(16) Intake Throttle Valve

A: Exhaust Gas Flow
B: Intake Air Flow

KiSC issued 03, 2016 A
