Intake Throttle Valve

The amount of air intake is regulated by the angle of

the  throttle  valve  and  the  exhaust  temperature  is

controlled when regenerating the DPF muffler.

9Y1210824ENM0045US0

Air Flow Sensor

The amount of air intake required for control of the

EGR valve used to reduce NOx is measured.

9Y1210824ENM0046US0

Temperature Sensor

This  is  mounted  on  the  DPF  muffler  and  the  DPF

muffler  DOC  intake,  DPF  intake,  and  DPF  discharge

exhaust  temperature,  needed  for  the  post  processing

system, are measured.

9Y1210824ENM0047US0

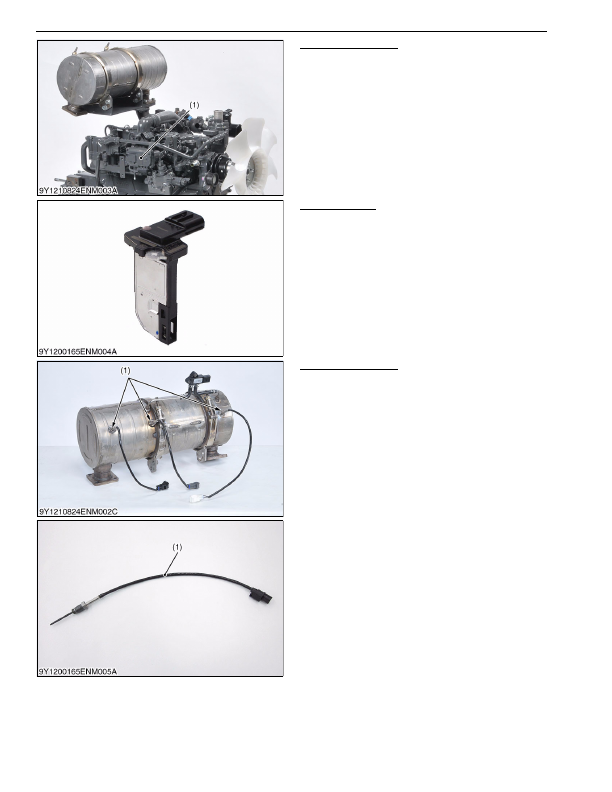

(1) Intake Throttle Valve

(1) Temperature Sensor
