ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S24

[2]  SEPARATING CLUTCH HOUSING AND ENGINE (ROPS TYPE)

Draining Coolant

 WARNING

• Do not remove the radiator cap when the engine is hot.

Then loosen cap slightly to the stop to relieve any excess
pressure before removing cap completely.

1. Stop the engine, remove the key and let it cool down.

2. To drain the coolant, open the radiator drain plug and remove

radiator cap. The radiator cap must be removed to completely

drain the coolant.

3. After all coolant is drained, reinstall the drain plug.

(When refilling)

• Fill with clean water and anti-freeze until the coolant level is just

below the port. Install the radiator cap securely.

• Fill with coolant up to

"FULL"

 mark on the recovery tank.

• Start and operate the engine for few minutes.

• Stop the engine and let cool. Check coolant level of recovery

tank and add coolant if necessary.

IMPORTANT

• Do not start engine without coolant.
• Use clean, fresh soft water and anti-freeze to fill the radiator

and recovery tank.

• When mixing the anti-freeze with water, the anti-freeze

mixing ratio is 50 %.

• Securely tighten radiator cap. If the cap is loose or

improperly fitted, water may leak out and the engine could
overheat.

• Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page

G-9.

9Y1210824CLS0014US0

Coolant capacity

(without recovery tank)

L3560

L4060

7.5 L

7.9 U.S.qts

6.6 Imp.qts

L4760

L5060

L5460

L6060

8.2 L

8.7 U.S.qts

7.2 Imp.qts

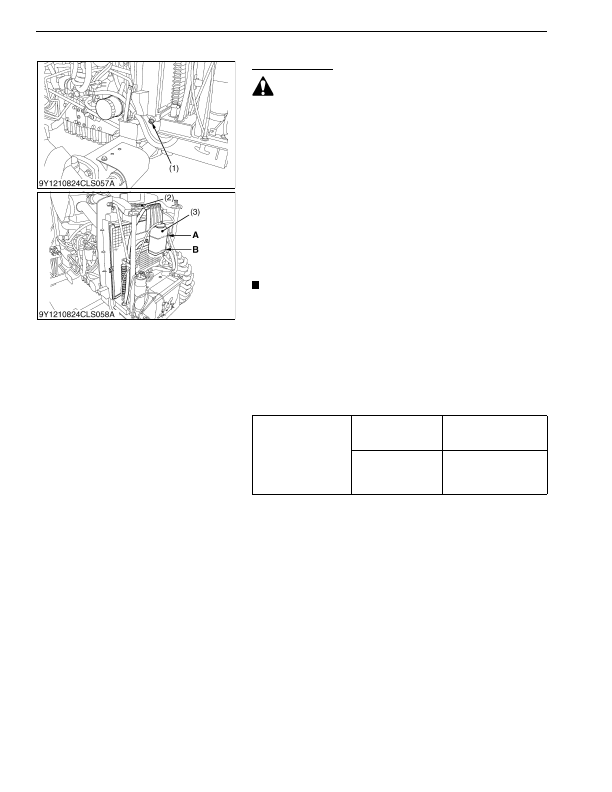

(1) Drain Plug

(2) Radiator Cap

(3) Recovery Tank

A: FULL
B: LOW

KiSC issued 03, 2016 A
