ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S31

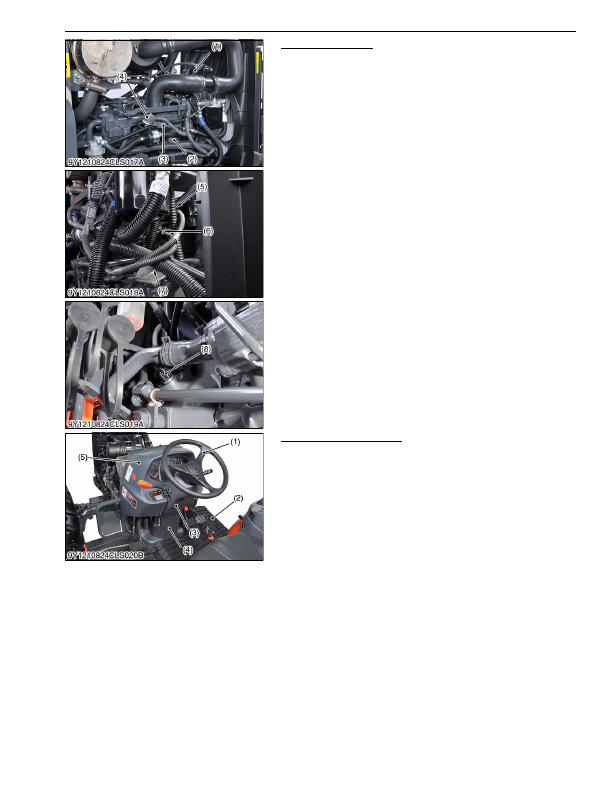

Sensor Connectors

1. Disconnect the air flow sensor connector (1), intake throttle

sensor connector (2), electromagnetic pump connector (3) and

EGR valve connector (4).

2. Disconnect the common rail sensor connector (5), suction

control valve connector (6) and camshaft position sensor

connector (7).

3. Disconnect the crankshaft position sensor connector (8).

4. Set aside the main harness to the rear.

9Y1210824CLS0035US0

Steering and Panel Cover

1. Remove the steering wheel (1).

2. Remove the mat (2).

3. Remove the steering post cover 2 (4) and steering post cover 1

(3).

4. Remove the meter panel cover (5).

9Y1210824CLS0010US0

(1) Air Flow Sensor Connector

(2) Intake Throttle Sensor Connector

(3) Electromagnetic Pump Connector

(4) EGR Valve Connector

(5) Common Rail Sensor Connector

(6) Suction Control Valve Connector

(7) Camshaft Position Sensor

Connector

(8) Crankshaft Position Sensor

Connector

(1) Steering Wheel

(2) Mat

(3) Steering Post Cover 1

(4) Steering Post Cover 2

(5) Meter Panel Cover
