L3560,L4060,L4760,L5060,L5460,L6060
9 ELECTRICAL SYSTEM
background image

ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S46

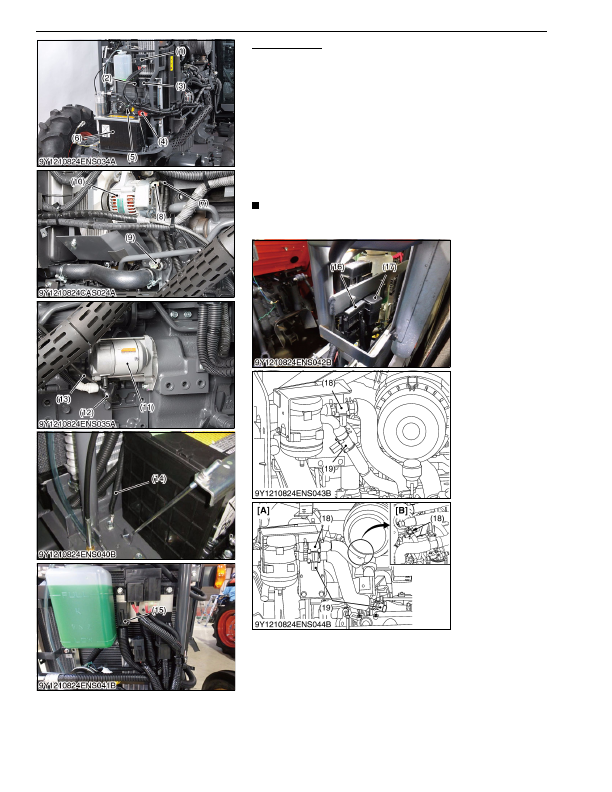

Electric Wiring

1. Remove the slow blow fuse box (1).

2. Remove the defogger relay (2) and defogger slow blow fuse (3).

(If equipped)

3. Disconnect the battery positive cable (4) and battery (6).

4. Disconnect the horn connectors (5).

5. Disconnect the

B

 terminal (7),

IG

 terminal (8) from the alternator

(10) and the oil pressure switch (9).

6. Disconnect the

ST

 terminal (13) and the

B

 terminal (12) from the

starter motor (11).

7. Disconnect  CCV  GND  wiring  harness  (14),  CCV  relay  (15),

CCV heater fuse (16), CCV SB fuse (17) and CCV heater (18)

(19). (If equipped)

NOTE

• When disconnecting the battery cords, disconnect the

negative cord first, when connecting, positive cord first.

9Y1210824CAS0071US0

(1) Slow Blow Fuse Box

(2) Defogger Relay

(3) Defogger Slow Blow Fuse

(4) Positive Cable

(5) Horn Connector

(6) Battery

(7)

B

 Terminal

(8)

IG

 Terminal

(9) Oil Pressure Switch

(10) Alternator

(11) Starter Motor

(12)

B

 Terminal

(13)

ST

 Terminal

(14) CCV GND Wiring Harness

(15) CCV Relay

(16) CCV Heater Fuse

(17) CCV SB Fuse

(18) CCV Heater (OUT)

(19) CCV Heater (IN)

[A] Left Side
[B] Right Side

KiSC issued 03, 2016 A
