ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S47

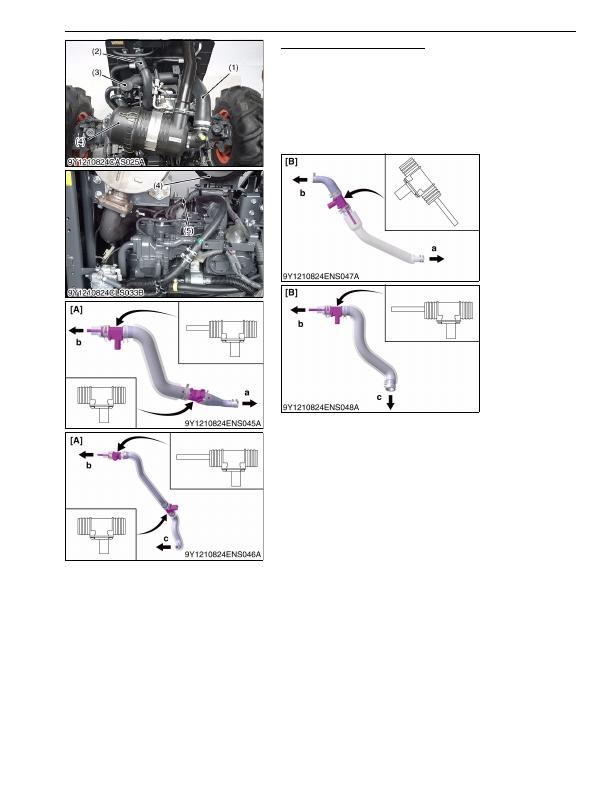

Air Cleaner and Radiator Hose

1. Remove the cramps and hoses of oil separator (3), then remove

the oil separator (3).

2. Remove the intake hose (1).

3. Remove the air cleaner bracket (5) together with air cleaner (4).

4. Remove the radiator upper hose (2) and lower hose.

(When reassembling)

• If CCV Heater is equipped, Be careful not to assemble in the

wrong direction. Refer the images shown here.

9Y1210824CAS0072US0

(1) Intake Hose

(2) Radiator Upper Hose

(3) Oil Separator

(4) Air Cleaner

(5) Air Cleaner Bracket

a:

To Engine Breather

b:

To CCV Inlet

c:

To Engine Inlet

[A] L3560, L4060, L4760
[B] L5060, L5460, L6060

KiSC issued 03, 2016 A

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 194

  • 1. Remove the cramps and hoses of oil separator (3), then remove the oil separator (3).
  • 2. Remove the intake hose (1).
  • 3. Remove the air cleaner bracket (5) together with air cleaner (4).
  • 4. Remove the radiator upper hose (2) and lower hose.
  • If CCV Heater is equipped, Be careful not to assemble in the wrong direction.
