ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S52

6. DISASSEMBLING AND ASSEMBLING

[1] OUTER PARTS

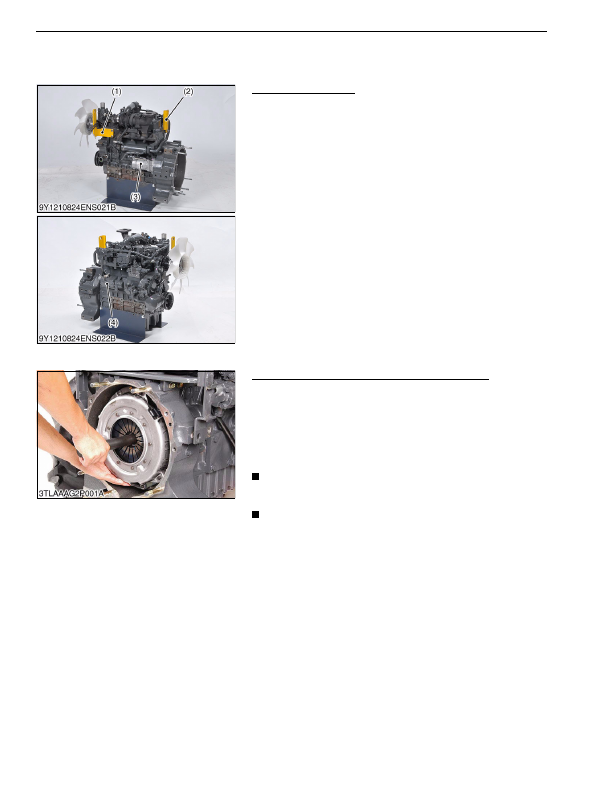

Outer Parts of Engine

1. Remove the engine hooks (1) and (2).

2. Remove the starter motor (3).

3. Remove  the  hydraulic  pump  (4)  with  pump  holder  and

regulating valve. [Manual Transmission and GST]

Remove the hydraulic pump (4) with pump holder. [HST]

9Y1210824ENS0028US0

[2] CLUTCH ASSEMBLY

Clutch Assembly (Manual Transmission and GST)

1. Remove the clutch from the flywheel.

(When reassembling)

• Direct  the  shorter  end  of  the  clutch  disc  boss  toward  the

flywheel.

• Apply molybdenum disulphide (Three Bond 1901 or equivalent)

to the splines of clutch disc boss.

• Install the pressure plate, noting the position of straight pins.

IMPORTANT

• Align the center of disc and flywheel by inserting the clutch

center tool. (See page G-63.)
NOTE

• Do not allow grease and oil on the clutch disc facing.

9Y1210824CLS0026US0

(1) Engine Hock

(2) Engine Hook

(3) Starter Motor

(4) Hydraulic Pump

KiSC issued 03, 2016 A
