ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S55

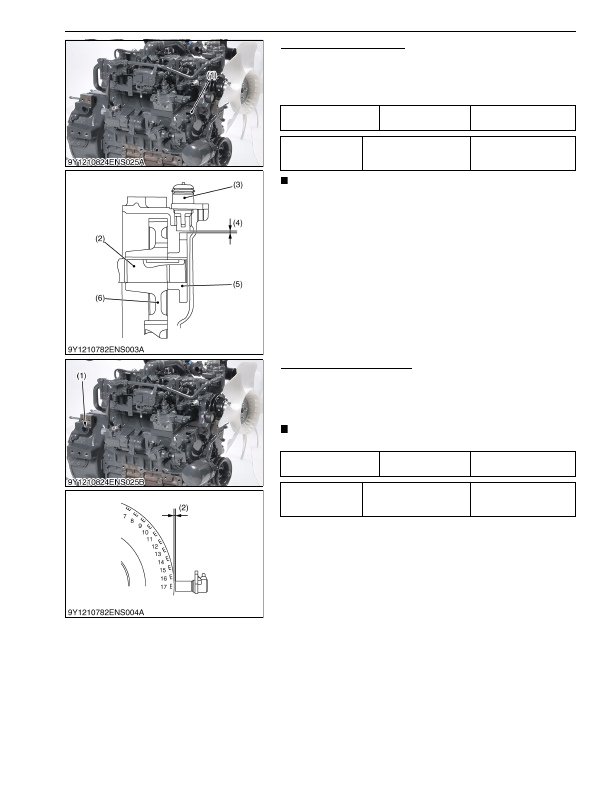

Camshaft Position Sensor

1. Remove the camshaft position sensor mounting screw.

2. Remove the camshaft position sensor (1).

(When reassembling)

• Replace the O-ring with a new one.

IMPORTANT

• If you drop the sensor, do not reuse it.

9Y1210824ENS0035US0

Crankshaft Position Sensor

1. Remove the crankshaft position sensor mounting screw.

2. Remove the crankshaft position sensor (1).

(When reassembling)

• Replace the O-ring with a new one.

IMPORTANT

• If you drop the sensor, do not reuse it.

9Y1210824ENS0036US0

Air Gap

Factory specification

0.2 to 1.3 mm

0.008 to 0.059 in.

Tightening torque

Camshaft position sensor

mounting screw

4 to 5 N·m

0.4 to 0.6 kgf·m

3 to 4 lbf·ft

(1) Camshaft Position Sensor

(2) Fuel Camshaft

(3) Sensor

(4) Air Gap

(5) Pulsa Cam

(6) Supply Pump Gear

Air Gap

Factory specification

0.3 to 1.5 mm

0.002 to 0.059 in.

Tightening torque

Crankshaft position sensor

mounting screw

4 to 6 N·m

0.4 to 0.6 kgf·m

3 to 4 lbf·ft

(1) Crankshaft Position Sensor

(2) Air Gap

KiSC issued 03, 2016 A
