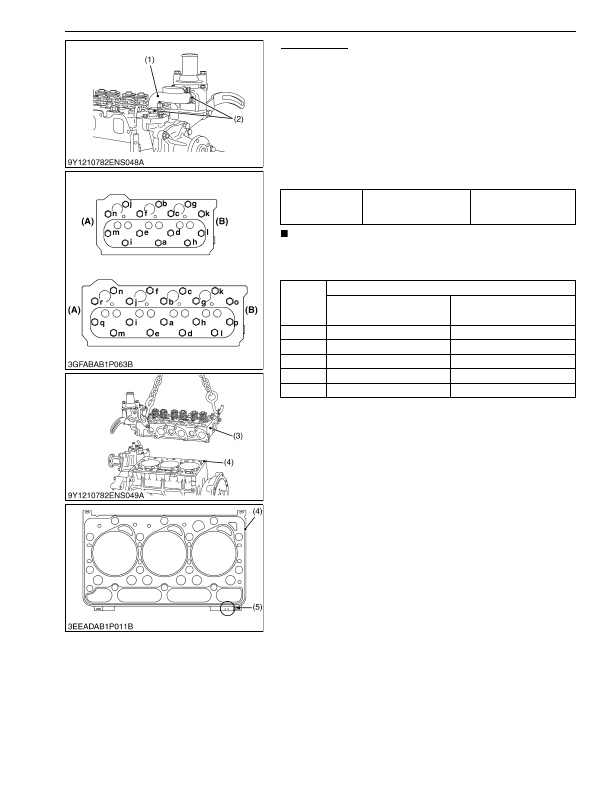

Cylinder Head

1. Remove the cylinder head screw in the sequence of

(n or r)

 to

(a)

.

2. Lift up the cylinder head (3) to remove.

3. Remove the cylinder head gasket (4).

(When reassembling)

• Replace the cylinder head gasket (4) with a new one.

• Apply sufficient oil and tighten the cylinder head screws.

• Tighten the cylinder head screws in a diagonal sequence. Start

from the center in the sequence of

(a)

 to

(n or r)

.

• Tighten them equally, or the shape of the head changes after

some time.

IMPORTANT

• Before you replace the cylinder head gasket (4), record the

mark (5) on the cylinder head gasket of the engine. Then
replace a cylinder head gasket with same mark.

(To be continued)

Tightening torque

Cylinder head screw

93.2 to 98.1 N·m

9.50 to 10.0 kgf·m

68.8 to 72.3 lbf·ft

Gasket

Mark and

Code

Number

Model

D1803-CR-E4

V2403-CR-E4,

V2403-CR-TE4

15

1G750-03600

1G790-03600

20

1G750-03310

1G790-03310

25

1G750-03610

1G790-03610

30

1G750-03620

1G790-03620

35

1G750-03630

1G790-03630

(1) Water Return Pipe

(2) Pipe Clamp

(3) Cylinder Head

(4) Cylinder Head Gasket

(5) Mark

(n or r) to (a) : To Loosen
(a) to (n or r) : To Tighten
(A) Gear Case Side
(B) Flywheel Side
