[7] SUPPLY PUMP

Supply Pump

 CAUTION

• Do not loosen the injection pipe when the fuel is under high

pressure (Within five minutes of stopping the engine).

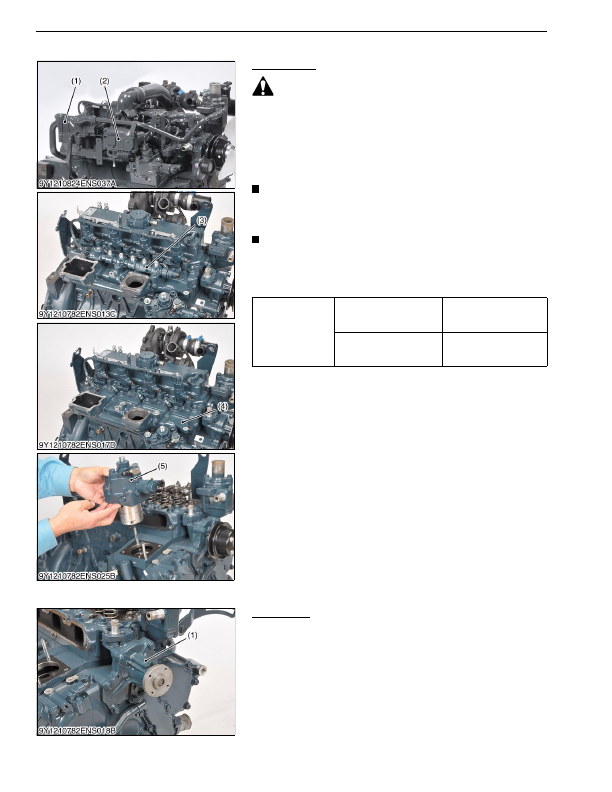

1. Remove the intake throttle valve assembly (2).

2. Remove the EGR valve assembly (1).

3. Remove the rail (3).

4. Remove the intake manifold (4).

5. Remove the supply pump (5).

NOTE

• Do not disassemble the supply pump.
• Store the supply pump so it does not get any dust in it.

(When reassembling)

NOTE

• When attaching the supply crank case, do not put force on

the MPRP and overflow sections of the part.

• Do not remove the dust protection cap until immediately

before you attach the part.

9Y1210824ENS0046US0

[8]  WATER PUMP AND OIL COOLER

Water Pump

1. Remove the pipe band and the water pipe (water pump side).

2. Remove the water pump (1).

(When reassembling)

• When  mounting  the  water  pump,  be  careful  not  to  forget

mounting the O-ring and not to let it out of position.

9Y1210824ENS0047US0

Tightening torque

Supply pump mounting nut

24 to 27 N·m

2.4 to 2.8 kgf·m

18 to 20 lbf·ft

Injection pipe retaining nut

24.5 to 29.0 N·m

2.5 to 3.0 kgf·m

18.1 to 21.3 lbf·ft

(1) EGR Valve Assembly

(2) Intake Throttle Valve Assembly

(3) Rail

(4) Intake Manifold

(5) Supply Pump

(1) Water Pump
