ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S63

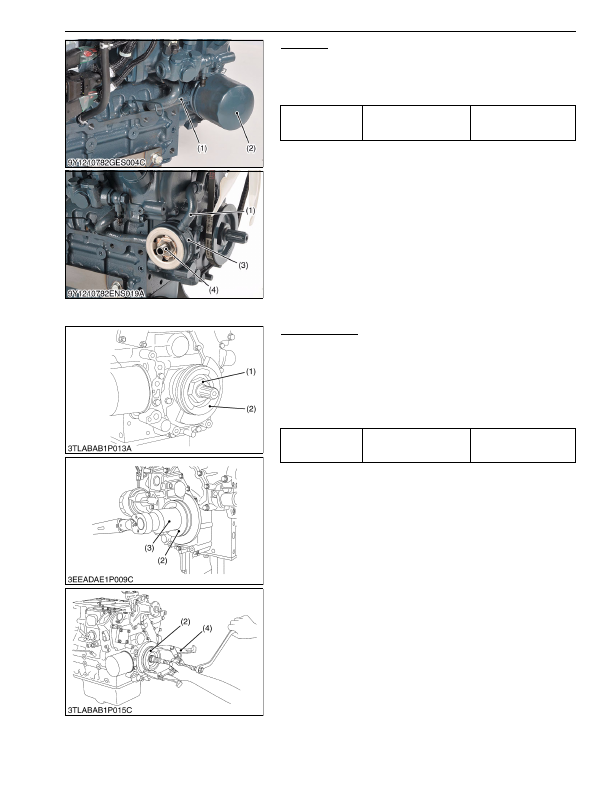

Oil Cooler

1. Remove the water pipe (1).

2. Remove the oil filter cartridge (2).

3. Remove the oil cooler joint screw (4).

4. Remove the oil cooler (3).

9Y1210824ENS0048US0

[9]  GEAR CASE AND TIMING GEAR

Fan Drive Pulley

1. Lock the flywheel with the flywheel stopper.

2. Remove  the  mounting  nut  (1)  of  the  fan  drive  pulley  with  a

46 mm (1.8 in.) deep socket wrench (3).

3. Remove the fan drive pulley (2) with a gear puller (4).

4. Remove the feather key.

(When reassembling)

• Apply grease to the splines of coupling.

9Y1210824ENS0049US0

Tightening torque

Oil cooler joint screw

40 to 44 N·m

4.0 to 4.5 kgf·m

29 to 32 lbf·ft

(1) Water Pipe

(2) Oil Filter Cartridge

(3) Oil Cooler

(4) Oil Cooler Joint Screw

Tightening torque

Mounting nut of fan drive

pulley

138 to 156 N·m

14.0 to 16.0 kgf·m

102 to 115 lbf·ft

(1) Nut

(2) Fan Drive Pulley

(3) 46 mm (1.8 in.) Deep Socket

Wrench

(4) Gear Puller

KiSC issued 03, 2016 A
