[10] PISTON AND CONNECTING ROD; Oil Pump; Crank Gear- Page 213

ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S66

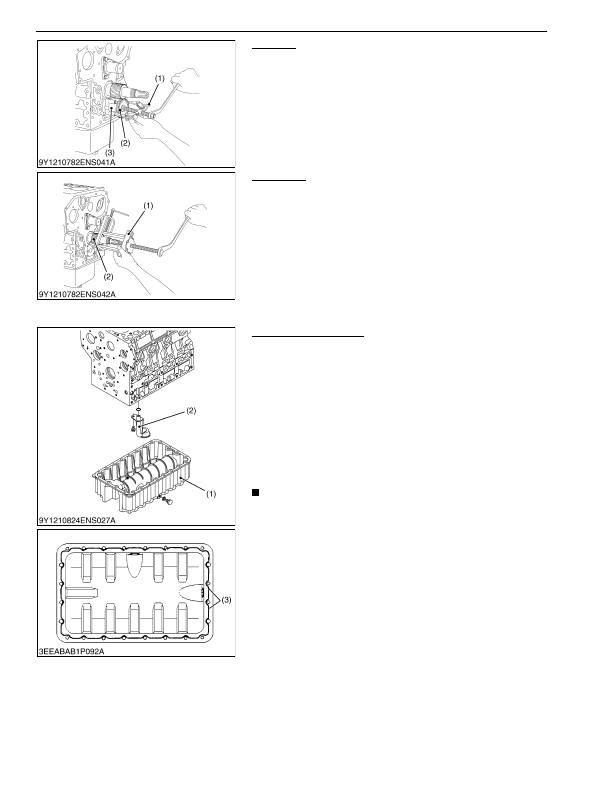

Oil Pump

1. Remove the nut.

2. Pull out the oil pump drive gear (2) with a gear puller (1).

3. Remove the 4 mounting screws of the oil pump. Remove the oil

pump (3).

9Y1210824ENS0055US0

Crank Gear

1. Pull out the crank gear (2) with a puller (1).

2. Remove the feather key.

9Y1210824ENS0056US0

[10] PISTON AND CONNECTING ROD

Oil Pan and Oil Strainer

1. Remove the oil pan mounting screws and remove the oil pan

(1).

2. Remove  the  oil  strainer  mounting  screw,  and  remove  the  oil

strainer (2).

(When reassembling)

• When installing the oil strainer, be careful not to damage the

O-ring.

• Apply liquid gasket (3) (Three Bond 1217H) to the oil pan as

shown in the figure.

• Make sure that the liquid gasket coating surface is free of water,

dust and oil in order to keep sealing effect.

• Carefully apply the adhesive evenly.

NOTE

• Make sure the surfaces align when mounting parts with a

liquid gasket applied to them.

• Mount parts with a liquid gasket within 10 minutes of

application.

• Tighten the mounting screws of the oil pan in diagonal

sequence from the center to tighten equally.

• After cleaning the oil strainer, install it.
• Attach the oil pan with its central drain plug facing toward

the air suction side.

9Y1210824ENS0057US0

(1) Gear Puller

(2) Oil Pump Drive Gear

(3) Oil Pump

(1) Puller

(2) Crank Gear

(1) Oil Pan

(2) Oil Strainer

(3) Liquid Gasket

KiSC issued 03, 2016 A
