[11] FLYWHEEL AND CRANKSHAFT

Flywheel

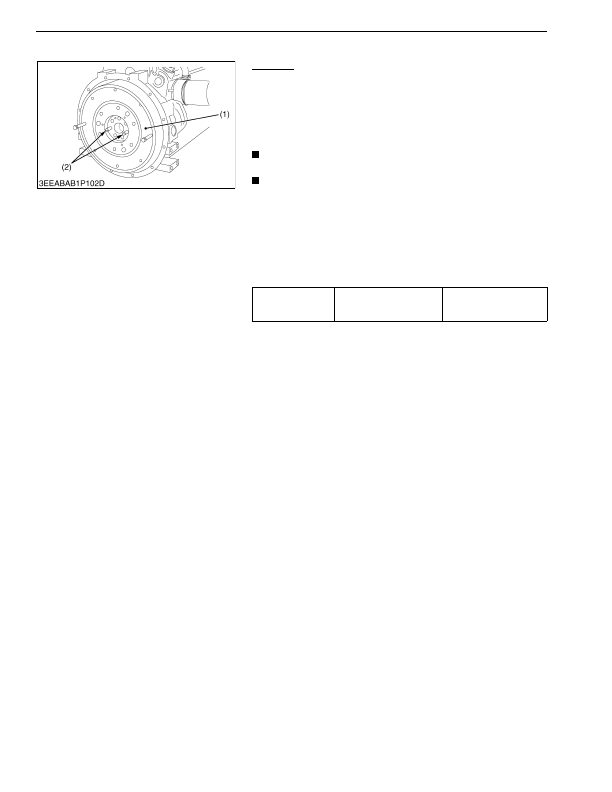

1. Attach the stopper to the flywheel (1).

2. Remove 2 flywheel screws.

3. Put the 2 flywheel guide screws (2) in the holes.

4. Remove all the flywheel screws.

5. Remove the flywheel (1) slowly along the flywheel guide screws

(2).

NOTE

• Do not use an impact wrench. Serious damage will occur.

IMPORTANT

• The flywheel is very heavy, so securely hold the flywheel

when removing.

(When reassembling)

• Put in 2 flywheel guide screws.

• Check  that  there  are  no  metal  particles  that  remain  on  the

flywheel mounting surfaces.

• Apply engine oil to the threads and the flange seat face of the

flywheel screw. Then attach the screw.

9Y1210824ENS0060US0

Tightening torque

Flywheel screw

98.1 to 107.9 N·m

10.0 to 11.0 kgf·m

72.4 to 79.58 lbf·ft

(1) Flywheel

(2) Flywheel Guide Screw
