ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S86

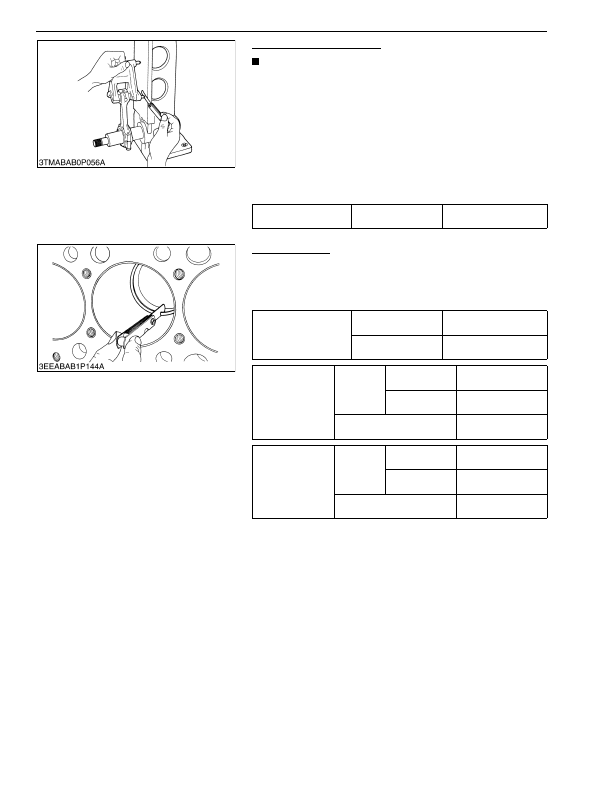

Connecting Rod Alignment

NOTE

• Make sure that the oil clearance of the small end bushing is

less than the allowable limit.

1. Install the piston pin into the connecting rod.

2. Install  the  connecting  rod  on  the  alignment  tool  of  the

connecting rod.

3. Put  a  gauge  on  the  piston  pin,  and  move  it  against  the  face

plate.

4. If the gauge does not touch fully against the face plate, measure

the space between the gauge pin and face plate.

5. If the measurement is more than the allowable limit, replace the

connecting rod.

9Y1210824ENS0093US0

Piston Ring Gap

1. Put the piston ring into the lower part of the liner (the least worn

out part) with the piston.

2. Measure the ring gap with a feeler gauge.

3. If the ring gap is more than the allowable limit, replace the ring.

9Y1210824ENS0094US0

Connecting rod

alignment

Allowable limit

0.05 mm

0.002 in.

Top ring

Factory specification

0.20 to 0.35 mm

0.0079 to 0.013 in.

Allowable limit

1.25 mm

0.0492 in.

Second ring

Factory

specifica-

tion

D1803-CR-E4

V2403-CR-E4

0.30 to 0.45 mm

0.012 to 0.017 in.

V2403-CR-TE4

0.40 to 0.55 mm

0.016 to 0.021 in.

Allowable limit

1.25 mm

0.0492 in.

Oil ring

Factory

specifica-

tion

V2403-CR-TE4

0.25 to 0.45 mm

0.0099 to 0.017 in.

D1803-CR-E4

V2403-CR-E4

0.20 to 0.40 mm

0.0079 to 0.015 in.

Allowable limit

1.25 mm

0.0492 in.

KiSC issued 03, 2016 A
