ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S91

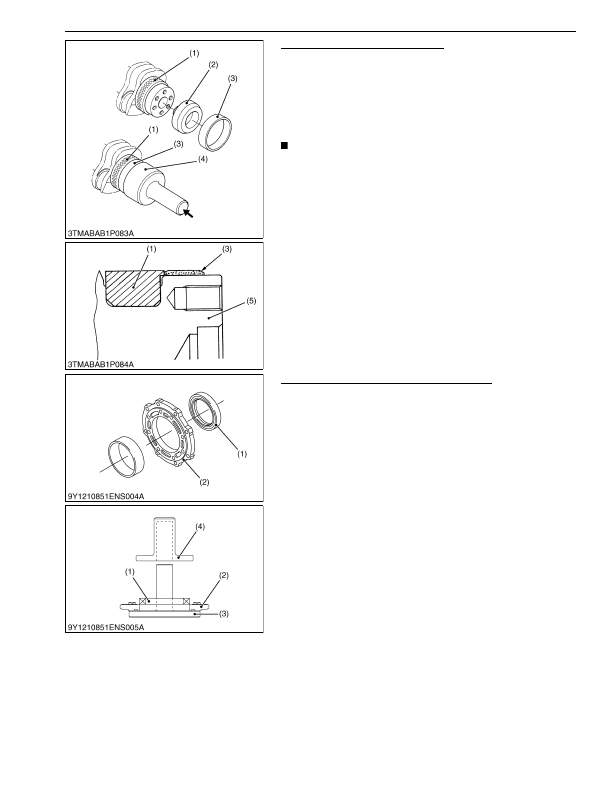

Replacement of Crankshaft Sleeve

1. Remove the used crankshaft sleeve (3).

2. Set the sleeve guide (2) to the crankshaft (5).

3. Set the stopper (1) to the crankshaft (5) (see the figure).

4. Increase the temperature of a new sleeve to between 150 and

200 °C (302 and 392 °F).

5. Install the sleeve to the crankshaft with the auxiliary socket for

pushing (4) (see the figure). (See page G-53.)

NOTE

• Make sure that the large chamfer of the sleeve points to

outward.

• If the temperature of the sleeve is not enough to install, the

sleeve can get a damage when you install.

9Y1210824ENS0102US0

Replacement of Bearing Case Cover Oil Seal
(When removing)

1. Remove  the  used  oil  seal  by  using  appropriate  tool  and  be

careful not to scratch the bearing case cover.

(When installing)

1. Clean a new oil seal (1) and bearing case cover (2).

2. Set the bearing case cover on the replacing tool 1 (3) and fix it

with bolts.

3. Apply a layer of engine oil to the seal outer periphery.

4. Install  the  oil  seal  into  the  bearing  case  cover  by  using  the

replacing tool 2 (4) as shown in the figure, until it is flash with the

bearing case cover.

9Y1210824ENS0103US0

(1) Stopper

(2) Sleeve Guide

(3) Crankshaft Sleeve

(4) Auxiliary Socket for Pushing

(5) Crankshaft

(1) Oil Seal

(2) Bearing Case Cover

(3) Replacing Tool 1

(4) Replacing Tool 2

KiSC issued 03, 2016 A

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 238

  • 1. Remove the used crankshaft sleeve (3).
  • 2. Set the sleeve guide (2) to the crankshaft (5).
  • 3. Set the stopper (1) to the crankshaft (5) (see the figure).
  • 4. Increase the temperature of a new sleeve to between 150 and 200 °C (302 and 392 °F).
  • 5. Install the sleeve to the crankshaft with the auxiliary socket for pushing (4) (see the figure).
  • 53.) NOTE • Make sure that the large chamfer of the sleeve points to outward.
  • 1. Remove the used oil seal by using appropriate tool and be careful not to scratch the bearing case cover.
  • 1. Clean a new oil seal (1) and bearing case cover (2).
  • 2. Set the bearing case cover on the replacing tool 1 (3) and fix it with bolts.
  • 3. Apply a layer of engine oil to the seal outer periphery.
  • 4. Install the oil seal into the bearing case cover by using the replacing tool 2 (4) as shown in the figure, until it is flash with the bearing case cover.
  • Make sure that the large chamfer of the sleeve points to outward.
  • If the temperature of the sleeve is not enough to install, the sleeve can get a damage when you install.
