ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S93

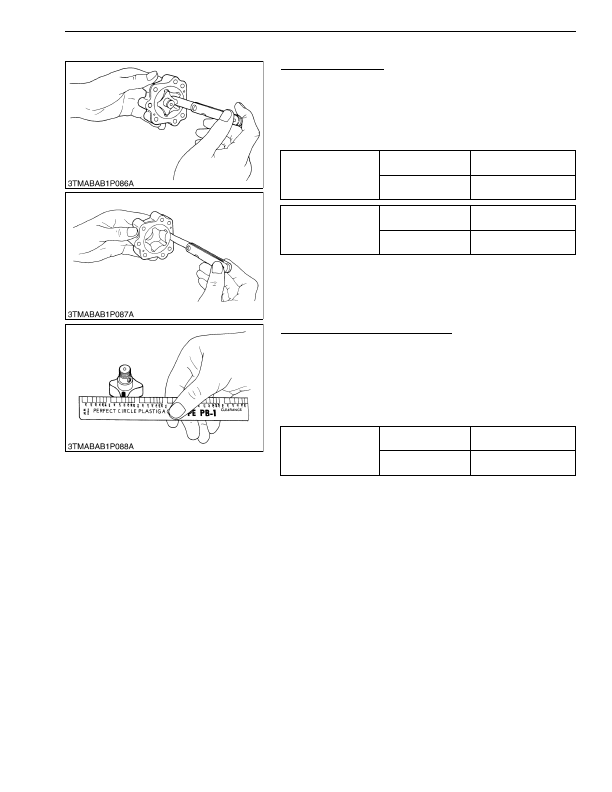

[6] OIL PUMP

Rotor Lobe Clearance

1. Measure the clearance between the lobes of the inner rotor and

the outer rotor with a feeler gauge.

2. Measure the clearance between the outer rotor and the pump

body with a feeler gauge.

3. If  the  clearance  is  more  than  the  allowable  limit,  replace  the

rotor assembly of the oil pump.

9Y1210824ENS0106US0

Clearance between Rotor and Cover

1. Put a strip of plastigauge on the rotor face with grease.

2. Install the cover and tighten the screws.

3. Remove the cover carefully.

4. Measure the width that plastigauge becomes flat with the scale

to get the oil clearance.

5. If  the  clearance  is  more  than  the  allowable  limit,  replace  the

rotor assembly of the oil pump.

9Y1210824ENS0107US0

Clearance between inner

rotor and outer rotor

Factory specification

0.030 to 0.14 mm

0.0012 to 0.0055 in.

Allowable limit

0.2 mm

0.008 in.

Clearance between outer

rotor and pump body

Factory specification

0.11 to 0.19 mm

0.0044 to 0.0074 in.

Allowable limit

0.25 mm

0.0098 in.

Clearance between inner

rotor and cover

Factory specification

0.105 to 0.150 mm

0.00414 to 0.00590 in.

Allowable limit

0.20 mm

0.008 in.

KiSC issued 03, 2016 A
