CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S4

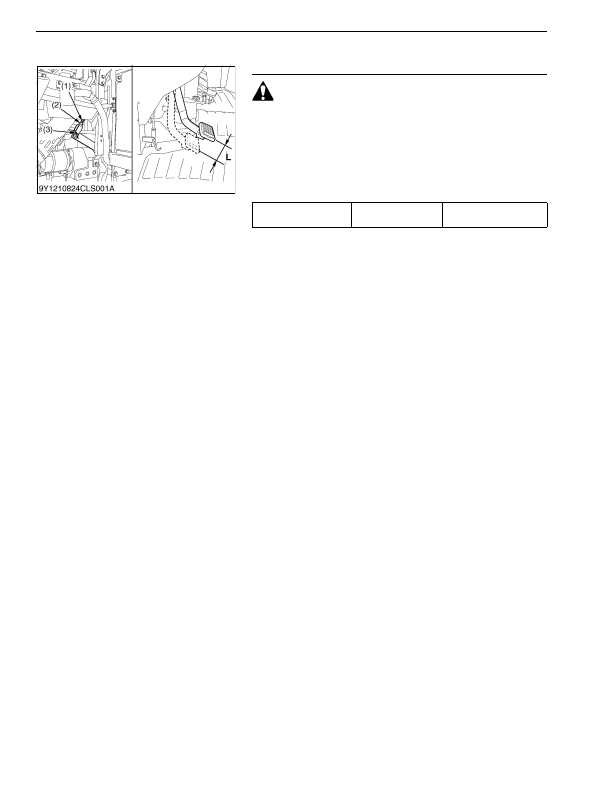

4. CHECKING AND ADJUSTING

Clutch Pedal Free Travel (Manual Transmission and GST Only)

CAUTION

• When checking, park the tractor on flat ground, apply the

parking brake, stop the engine and remove the key.

1. Slightly depress the clutch pedal and measure free travel

"L"

at

top of clutch pedal.

2. If the measurement is not within the factory specifications,

loosen the lock nut (2), remove the clevis pin (3) adjust the

length of rod (1) within acceptable limits.

3. Retighten the lock nut (2) and split the cotter pin.

9Y1210824CLS0004US0

Clutch pedal free travel

"L"

Factory specification

20 to 30 mm

0.78 to 1.18 in.

(1) Clutch Pedal Rod

(2) Lock Nut

(3) Clevis Pin

L:

Free Travel

KiSC issued 03, 2016 A
