Front Grill, Skirts and Bonnet

1. Pull down the knob (2) and open the bonnet (1).

2. Disconnect the battery negative cable (3).

3. Remove the front grill (4), left and right side skirts (5).

4. Disconnect the head light connector (6).

5. Remove the damper (7).

6. Remove the β pin (8), then the bonnet.

NOTE

• When disconnecting the battery cables, disconnect the

negative cable first. When connecting the battery cables,
connect the positive cable first.

9Y1210824CLS0006US0

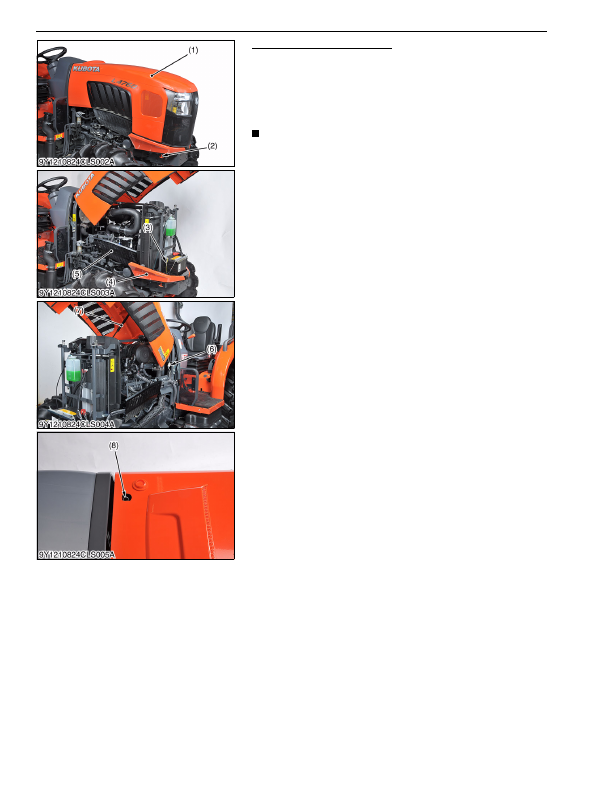

(1) Bonnet

(2) Knob

(3) Battery Negative Cable

(4) Front Grill

(5) Skirt

(6) Head Light Connector

(7) Damper

(8) β Pin
