CLUTCH
L3560, L4060, L4760, L5060, L5460, L6060, WSM
2-S9

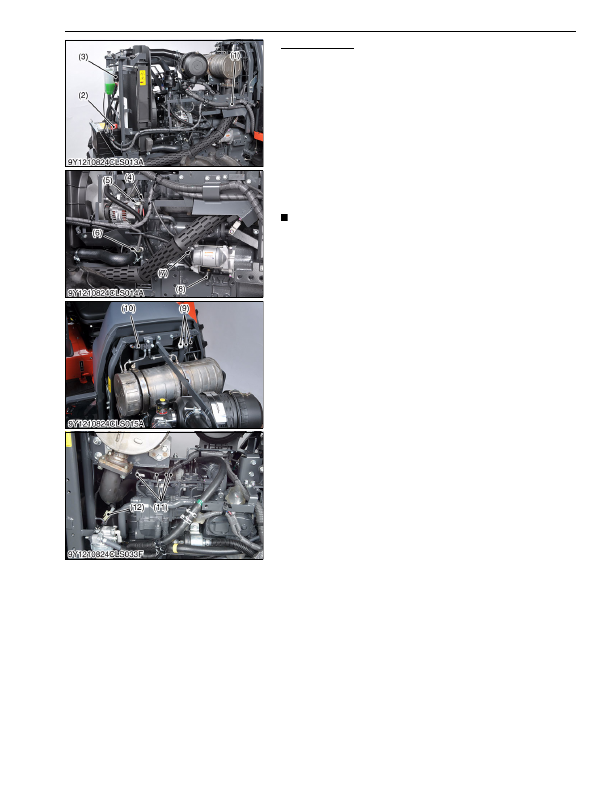

Wiring Harness
1. Remove the harness clamps and harness cover (1).
2. Disconnect the battery positive cable (2) and battery.
3. Remove the slow blow fuse box (3).
4. Disconnect the alternator terminal
B
(4) and terminal
IG
(5).
5. Disconnect the oil pressure switch connector (6), starter
terminal
B
(8) and terminal
ST
(7).
6. Disconnect the DPF temperature sensor connectors (9) and
differential pressure connector (10).
7. Disconnect the injector connectors (11) and glow plug
connector (12).
8. Disconnect CCV GND wiring harness (13), CCV relay (14),
CCV heater fuse (15), CCV SB fuse (16) and CCV heater (17)
(18). (If equipped)
NOTE
• When disconnecting the battery cables, disconnect the
negative cable first. When connecting the battery cables,
connect the positive cable first.
(To be continued)
(1) Harness Cover
(2) Battery Positive Cable
(3) Slow Blow Fuse Box
(4) Alternator Terminal
B
(5) Alternator Terminal
ST
(6) Oil Pressure Switch Connector
(7) Starter Terminal
ST
(8) Starter Terminal
B
(9) DPF Temperature Sensor
Connector
(10) DPF Differential Pressure
Connector
(11) Injector Connector
(12) Glow Plug Connector
KiSC issued 03, 2016 A
