CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S10

(Continued)

9Y1210824CLS0009US0

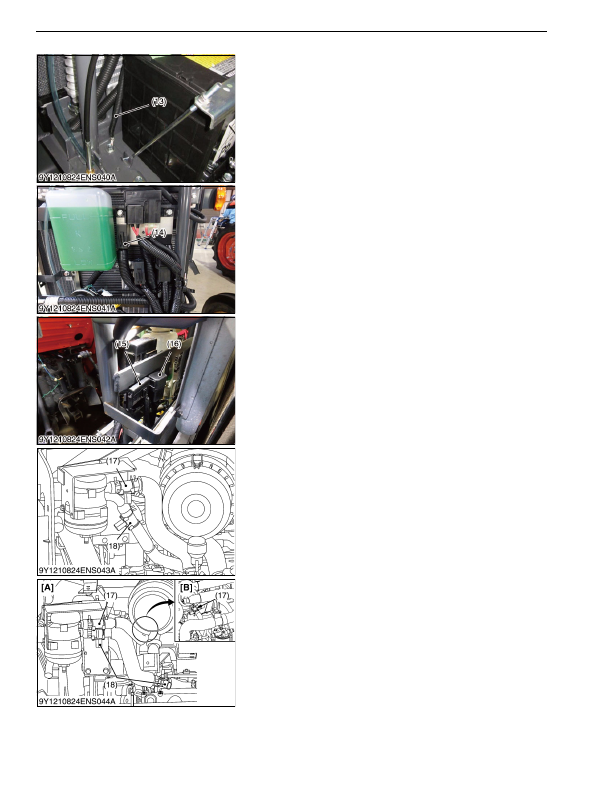

(13) CCV GND Wiring Harness

(14) CCV Relay

(15) CCV Heater Fuse

(16) CCV SB Fuse

(17) CCV Heater (OUT)

(18) CCV Heater (IN)

[A] Left Side
[B] Right Side

KiSC issued 03, 2016 A
