CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S12

Meter Panel and Wiring Harness

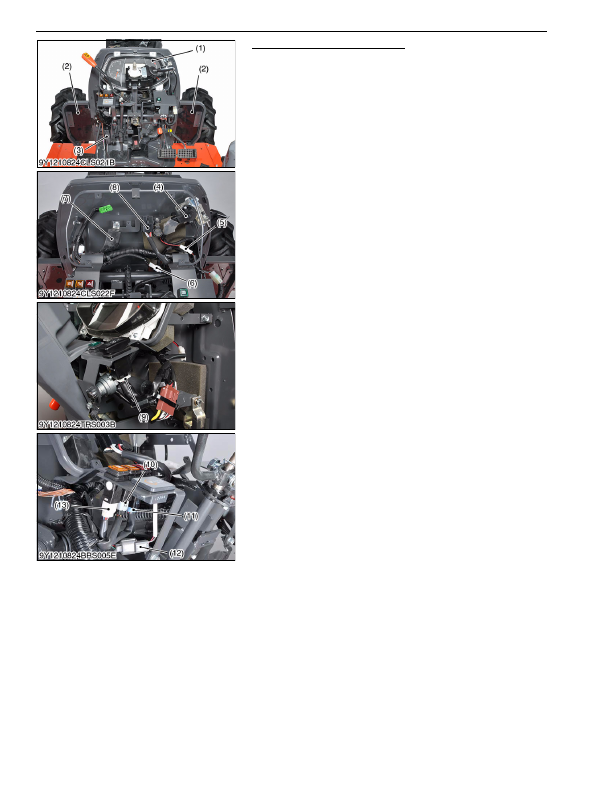

1. Remove the meter panel (1).

2. Remove the right and left mud shields (2).

3. Remove the fuse box (3) and relay box (8).

4. Disconnect the flasher relay connector (7), buzzer connector (5)

and parking brake switch connector (6).

5. Disconnect the foot throttle sensor connector (4). (Manual

Transmission and GST only)

6. Disconnect the cruise control switch connector (9). (HST only)

7. Disconnect the DPF auto switch connector (13), DPF switch

connector (10), hazard switch connector (11) and display mode

switch connector (12).

9Y1210824ENS0128US0

(1) Meter Panel

(2) Mud Shield

(3) Fuse Box

(4) Foot Throttle Sensor Connector

(5) Buzzer Connector

(6) Parking Brake Switch Connector

(7) Flasher Unit

(8) Relay Box

(9) Cruise Control Switch

(10) DPF Switch Connector

(11) Hazard Switch Connector

(12) Display Mode Switch Connector

(13) DPF Auto Switch Connector
