CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S19

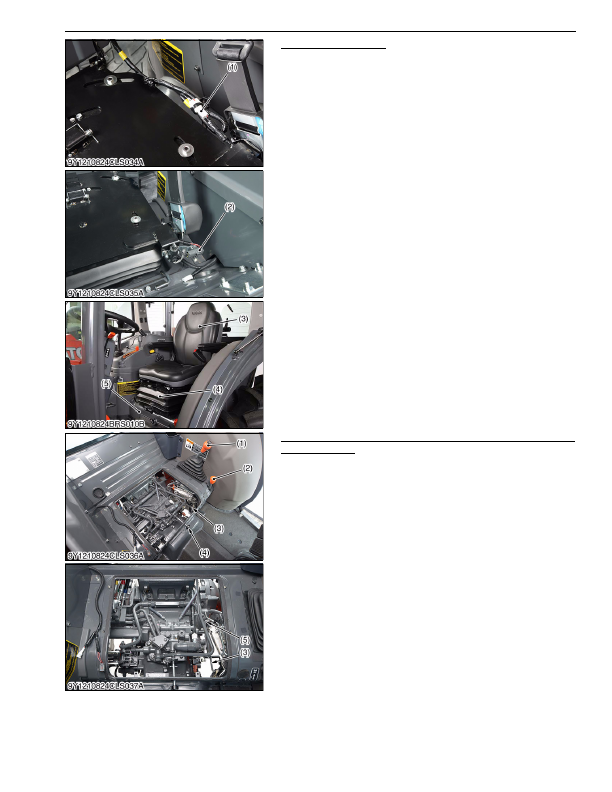

Seat and Seat Bracket

1. Disconnect the seat switch connector (1) and seat tilt switch

connector (2).

2. Remove the seat (3).

3. Remove the seat suspension (4) together with seat bracket (5).

9Y1210824CLS0017US0

Lever Grips, Differential Lock Rod and Lowering Speed
Adjusting Knob

1. Remove the range gear shift lever grip (1) and front wheel drive

lever grip (2).

2. Remove the differential lock rod (3) and the lowering speed

adjusting knob (4).

3. Remove the range gear shift rod (5).

9Y1210824CLS0018US0

(1) Seat Switch Connector

(2) Seat Tilt Switch Connector

(3) Seat

(4) Seat Suspension

(5) Seat Bracket

(1) Range Gear Shift Lever Grip

(2) Front Wheel Drive Lever Grip

(3) Differential Lock Rod

(4) Lowering Speed Adjusting Knob

(5) Range Gear Shift Rod
