CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S23

Mat, Panel Cover and Linkage

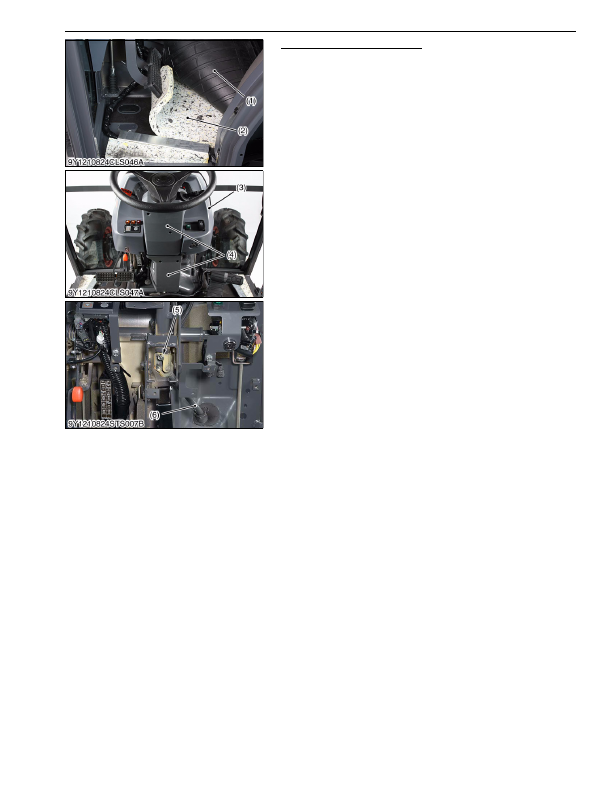

1. Remove the step mat (1) and sound absorber (2).

2. Remove the steering post cover 1 and 2 (4).

3. Remove the panel cover (3).

4. Remove the universal joint screw (5) and disconnect the

steering joint shaft (6).

9Y1210824CLS0022US0

(1) Step Mat

(2) Sound Absorber

(3) Panel Cover

(4) Steering Post Cover

(5) Universal Joint Screw

(6) Steering Joint Shaft
