CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S24

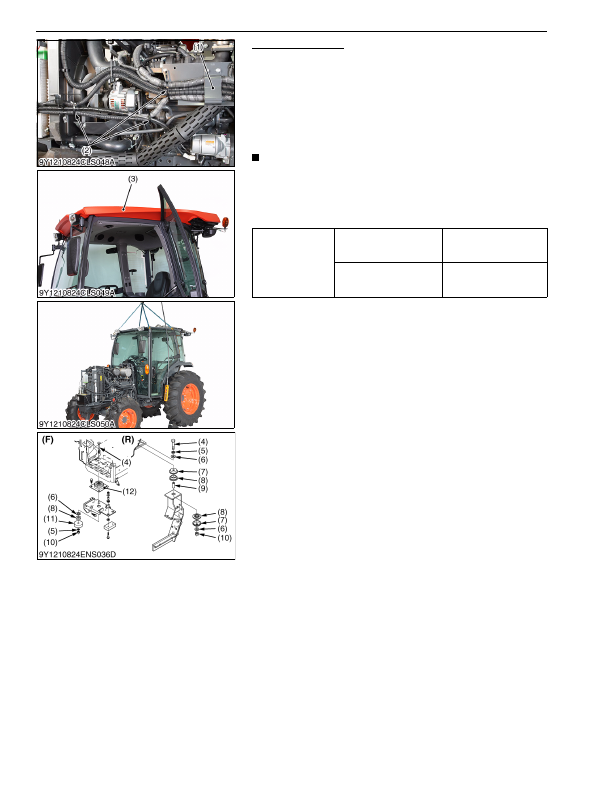

Dismounting Cabin

1. Remove  the  wiring  harness  cover  (1)  and  wiring  harness

tighteners (2).

2. Remove the cabin outer roof (3).

3. Secure the cabin with nylon straps and hoist.

4. Remove the cabin mounting bolts and nuts.

5. Dismount the cabin from the tractor body with careful attention

to the hoses connecting to the air conditioner, then set the cabin

to the left side of the tractor body.

NOTE

• Lift the cabin while making sure it does not catch on

anything.

(When reassembling)

• Be sure to install the washers and mount rubbers, etc. in their

original positions as shown in figure.

9Y1210824CLS0023US0

Tightening torque

Outer roof mounting screw

3.5 to 4.0 N·m

0.36 to 0.40 kgf·m

2.6 to 2.9 lbf·ft

Cabin mounting bolt and

nut

124 to 147 N·m

12.6 to 15.0 kgf·m

91.2 to 108 lbf·ft

(1) Wiring Harness Cover

(2) Wiring Harness Tightener

(3) Outer Roof

(4) Bolt

(5) Spring Washer

(6) Washer

(7) Cup

(8) Rubber

(9) Collar

(10) Nut

(11) Damper

(12) Cabin Rubber

(F) Front Side
(R) Rear Side

KiSC issued 03, 2016 A
