CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S29

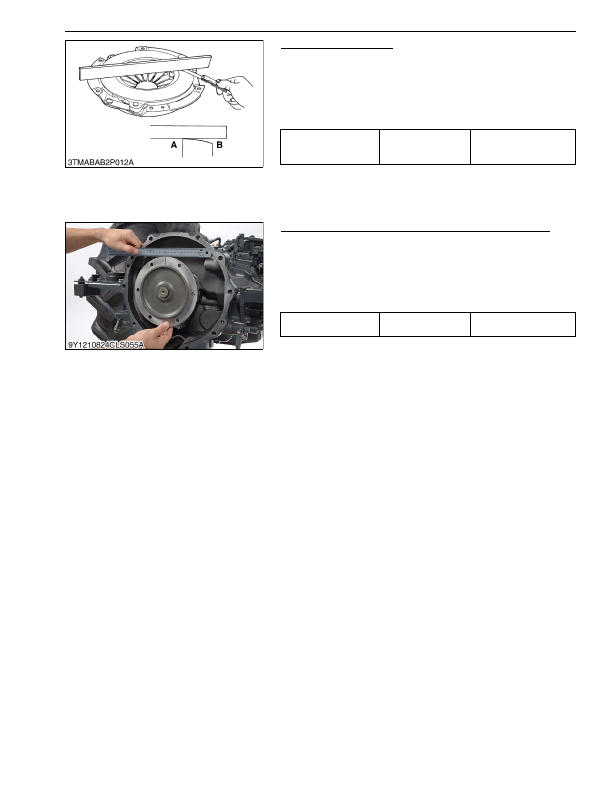

Pressure Plate Flatness

1. Place  a  straight  edge  on  the  pressure  plate  and  measure

clearance with a feeler gauge at several points.

2. If the clearance exceeds the allowable limit, replace it.

3. When  the  pressure  plate  is  worn  around  its  outside  and  its

inside surface only is in contact with the straight edge, replace

even if the clearance is within the allowable limit.

9Y1210824CLS0033US0

[2] HST

Backlash between Clutch Coupling Boss and Input Shaft

1. Put a mark on the rim of the clutch coupling (see the picture on

the left) and mount the clutch coupling to the input shaft.

2. Hold the input shaft and move the clutch coupling to measure

the displacement of the mark.

3. If  the  displacement  exceeds  the  allowable  limit,  replace  the

clutch coupling.

9Y1210824CLS0034US0

Clearance between

pressure plate and

straight edge

Allowable limit

0.2 mm

0.008 in.

A: inside

B: Outside

Displacement

Allowable limit

1.5 to 2.0 mm

0.059 to 0.078 in.

KiSC issued 03, 2016 A
