TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M5

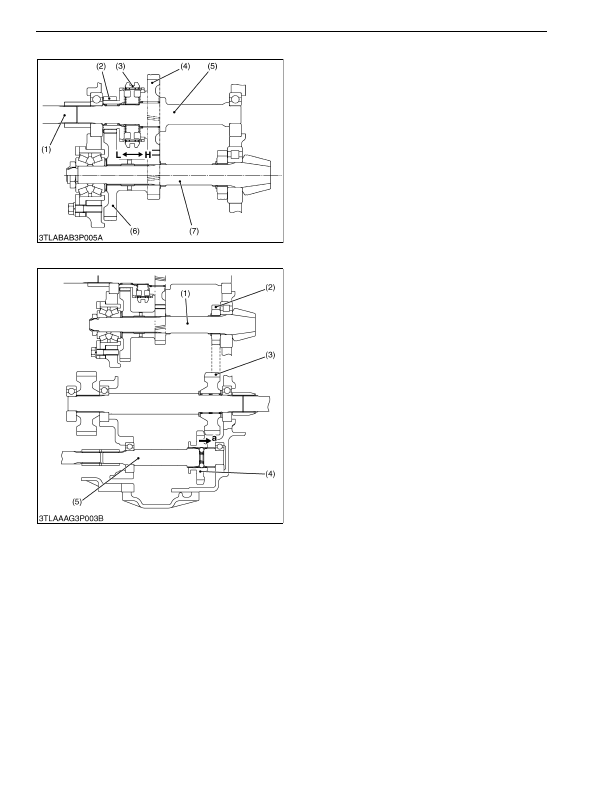

(3)  Range Gear Shift Section

The  range  gear  shift  section  is  located  in  the

differential gear case, and it uses constant mesh.

9Y1210824TRM0007US0

(4)  Front Wheel Drive Section

Front  wheel  drive  shift  section  is  located  in  the

differential  gear  case.  Two  wheel  drive  or  four  wheel

drive is selected by operating the front wheel drive lever

to shift the shifter gear (4).

9Y1210824TRM0008US0

(1) Shuttle Gear Shaft

(2) Gear for Low

(3) Shifter

(4) Gear for High

(5) Range Gear Shaft

(6) Counter Gear

(7) Spiral Bevel Pinion

L:

Low Speed

H: High Speed

(1) Spiral Bevel Pinion

(2) Gear

(3) Front Wheel Drive Gear

(4) Shifter Gear

(5) Front Wheel Drive Shaft

(Connected to Propeller

Shaft)

a:

Four Wheel Drive Position

KiSC issued 03, 2016 A
