TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M7

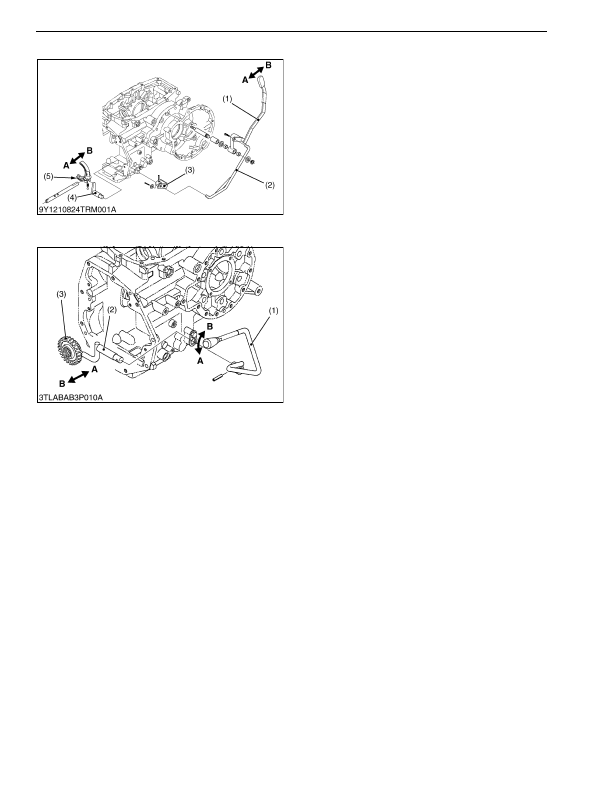

(3)  Range Gear Shift Lever

The links from the shift lever (1) to the shift fork (5)

are connected as shown in the figure.

When the shift lever (1) is moved to the

"A"

 side, the

shift fork (5) is moved to the

"A"

 side by means of the rod

(2), sub-arm (3), and shift arm (4), changing the shift arm

to the Lo-speed side. When the shift lever (1) is moved

to the

"B"

 side, the shift fork (5) is moved to the Hi-speed

side.

9Y1210824TRM0011US0

(4)  Front Wheel Drive Lever

The shift lever (1) is connected directly to the shift

fork (2).

When the shift lever (1) is moved to the

"A"

 side, the

shift fork (2) is also moved to the

"A"

 side, then the front

wheel drive is

"Engaged"

.

When the shift lever (1) is moved to the

"B"

 side, the

front wheel drive is

"Disengaged"

.

9Y1210824TRM0012US0

(1) Shift Lever

(2) Rod

(3) Sub-arm

(4) Shift Arm

(5) Shift Fork

A: Lo-speed Shift
B: Hi-speed Shift

(1) Shift Lever

(2) Shift Fork

(3) Shifter Gear

A: Engaged
B: Disengaged

KiSC issued 03, 2016 A
