TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M8

3.  GLIDE SHIFT TRANSMISSION (GST)

[1]  CHARACTERISTIC AND SYSTEM OUTLINE

In addition to the former GST system that controls

the gear shifting and clutch operation hydraulically, the

GST  system  of  L60  series  tractor  has  the  function  to

control these operations electrically.

12 forward and 8 reverse speeds can shift only by

operating the main shift lever (GST lever) (4) and shuttle

shift lever (2) without the clutch operation as well as the

former GST system. In addition, the movement and gear

shifting according to the oil temperature and the traveling

speed  can  be  achieved  by  having  electronically

controlled  the  GST system,  and a  smoother  operation

can be done.

Moreover,  because  the  selected  speed  and  the

traveling  speed  can  be  checked  by  the  liquid  crystal

display  (LCD)  (1)  of  electronic  instrument  panel

(Intellipanel)  (3),  which  can  do  a  comfortable  tractor

operation. And it is excellent in service because the error

indication  can  be  checked  with  liquid  crystal  display

(LCD)  (1)  when  the  electric  wiring  is  disconnected  or

short-circuited.

9Y1210824TRM0013US0

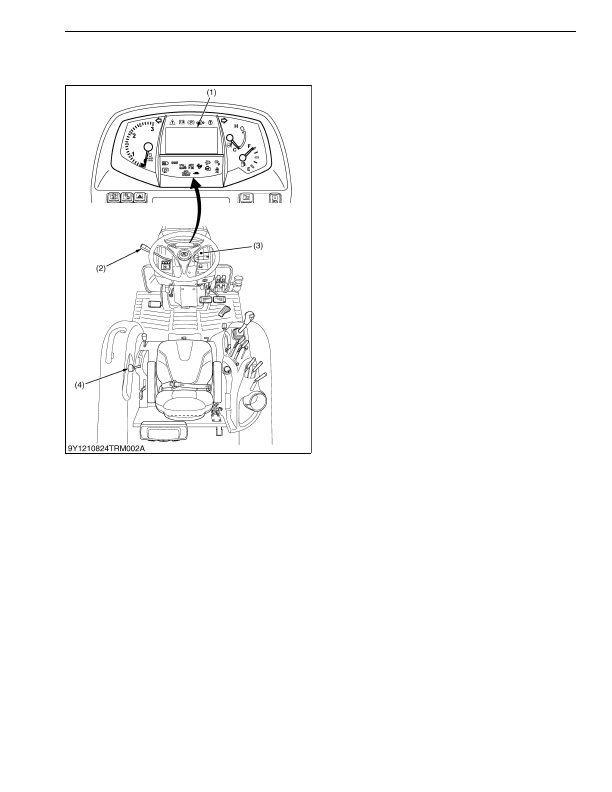

(1) Liquid Crystal Display (LCD)

(2) Shuttle Lever

(3) Electronic Instrument Panel

(Intellipanel)

(4) Main Shift Lever (GST Lever)

KiSC issued 03, 2016 A
