TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M13

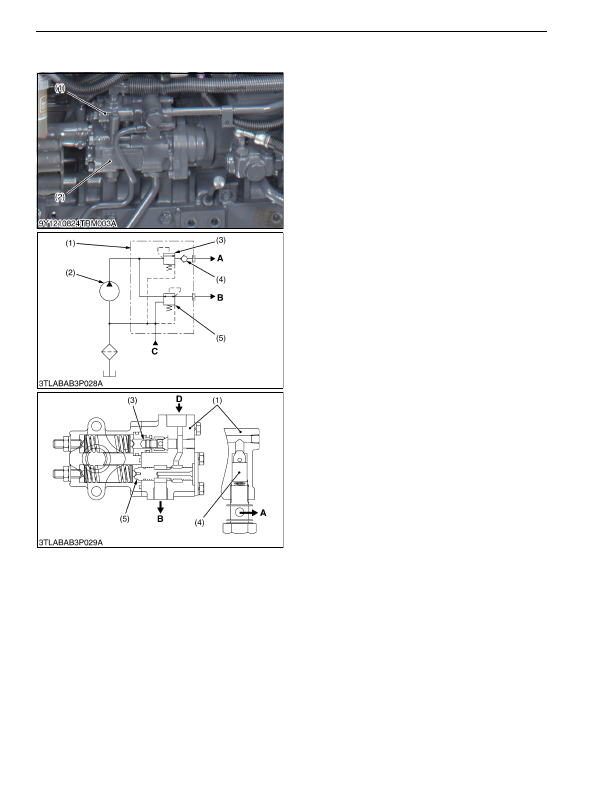

(2)  Construction and Function of Components

[A] Regulating Valve

The  oil  from  the  hydraulic  pump  for  the  power

steering  system  flows  to  the  GST  circuit  to  set  the

pressure  of  the  circuit.  Other  oil  flows  to  the  power

steering circuit.

The oil from the power steering hydraulic pump (2)

flows through the pressure reducing valve (5) to the GST

circuit. When the oil is filled into the circuit, the pressure

reducing valve (5) is closed to keep the pressure in the

GST system circuit to 2.45 MPa (25.0 kgf/cm

2

, 356 psi).

The  oil  from  the  power  steering  pump  passes

through the regulating valve (3) and check valve (4), and

then  it  flows  to  power  steering  circuit.  The  regulating

valve (3) is provided to keep 2.94 MPa (30.0 kgf/cm

2

,

427 psi) at inlet pressure of the pressure reducing valve

(5) except when the power steering is operated. Thereby

getting  2.45  MPa  (25.0  kgf/cm

2

,  356  psi)  of  the  GST

circuit pressure.

9Y1210824TRM0017US0

(1) Regulating Valve Assembly

(2) Hydraulic Pump

(3) Regulating Valve

(4) Check Valve

(5) Pressure Reducing Valve

A: To Power Steering Circuit
B: To GST Circuit and PTO

Clutch Valve

C: From Power Steering

Circuit

D: From Hydraulic Pump

KiSC issued 03, 2016 A
