TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M21

4.  HYDROSTATIC TRANSMISSION (HST)

[1] POWER TRAIN

The transmission of this model consists of a series of gears and shafts as shown in previous page. The traveling

system chiefly consists of hydrostatic transmission section, range gear shift section and front wheel drive section.

9Y1210824TRM0027US0

(1) Structure

The HST  of L60 series tractor  is a built-in type to the  clutch housing, and HST with the servomechanism  is

adapted. The servomechanism controls the pedal operation of HST hydraulically. As a result, the HST pedal feels

extremely light and smoother pedal operation can be done.

HST  assembly  chiefly  consists  of  HST  case  (clutch  housing),  variable  displacement  piston  pump,  variable

displacement piston motor, charge pump, Hi-Lo solenoid valve and proportional valves. Refer to the next page for

detailed parts in the HST.

9Y1210824TRM0028US0

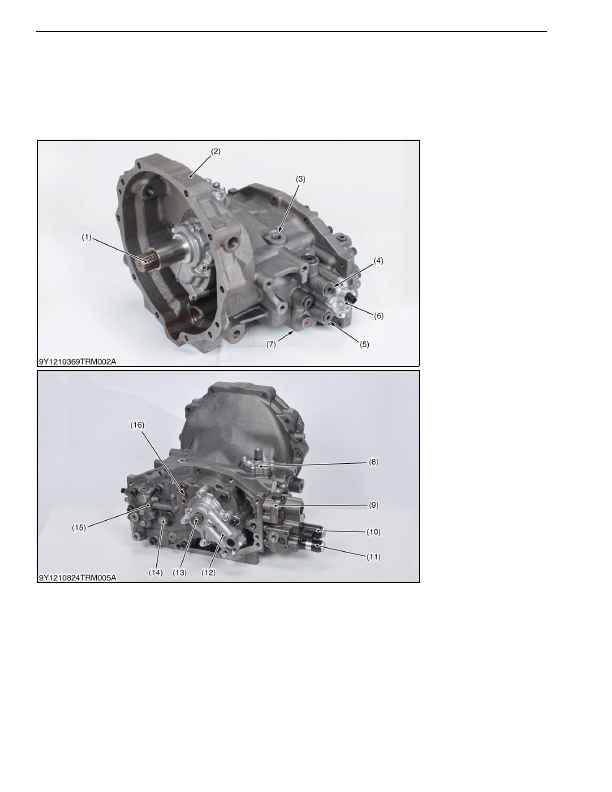

(1) Input Shaft

(2) HST Case (Clutch Housing)

(3) Outlet Port (To Oil Cooler)

(4) Check and High Pressure

Relief Valve (Forward)

(5) Check and High Pressure

Relief Valve (Reverse)

(6) Hi-Lo Solenoid Valve

(7) Charge Relief Valve

(8) Servo Piston

(9) Regulator

(10) Proportional Valve (Reverse)

(11) Proportional Valve (Forward)

(12) Charge Pump

(13) Pump Shaft

(14) Output Shaft (Motor Shaft)

(15) Port Block Cover

(16) Case Relief Valve

KiSC issued 03, 2016 A
