TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M22

9Y1210824TRM0029US0

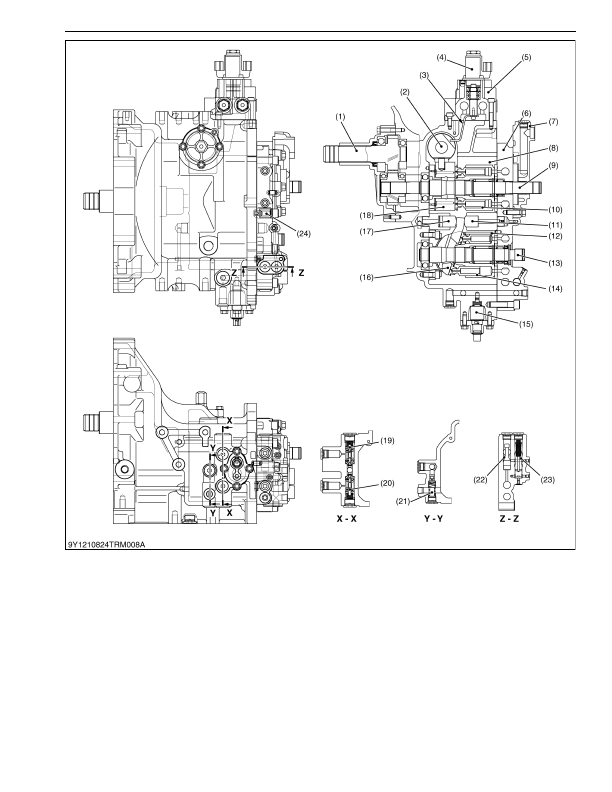

(1) Input Shaft

(2) Servo Piston

(3) Feedback Rod

(4) Proportional Valve

(5) Regulator Assembly

(6) Port Block Cover

(7) Charge Pump

(8) Cylinder Block

(9) Pump Shaft

(10) Piston (Pump)

(11) Piston (Hi)

(12) Cylinder Block (Motor)

(13) Output Shaft (Motor Shaft)

(14) Piston (Motor)

(15) Hi-Lo Solenoid Valve

(16) Variable Swashplate (Motor)

(17) Piston (Lo)

(18) Variable Swashplate (Pump)

(19) Check and High Pressure

Relief Valve (Foward)

(20) Check and High Pressure

Relief Valve (Reverse)

(21) Charge Relief Valve

(22) Spool (Pressure Selector)

(23) Spool (Hi-Lo)

(24) Case Relief Valve

X:

Sectional View X-X

Y:

Sectional View Y-Y

Z:

Sectional View Z-Z

KiSC issued 03, 2016 A
