TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M39

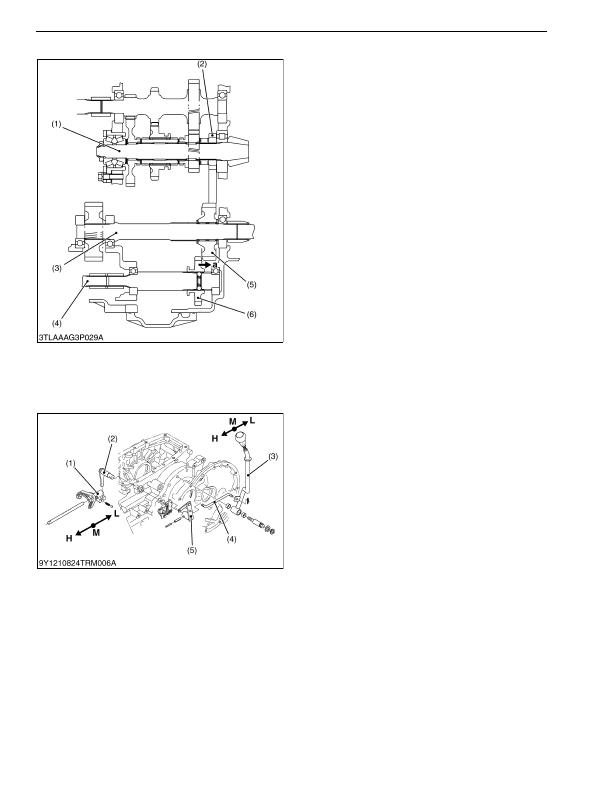

(6) Front Wheel Drive Section

Front wheel drive section is located in the differential

gear case.

2 wheel drive or 4 wheel drive is selected by

operating the front wheel drive lever to shift the shifter

gear (6).

9Y1210824TRM0044US0

[2] SHIFT LINKAGE MECHANISM

The shift linkage mechanism of "Front Wheel Drive Lever", refer to page 3-M7.

9Y1210824TRM0045US0

(1) Range Gear Shift Lever

The links are connected from the shift lever (3) to the

shift fork (1) as shown in figure.

9Y1210824TRM0046US0

(1) Spiral Bevel Pinion Shaft

(2) Front Wheel Drive Output

Gear

(3) PTO Drive Shaft

(4) Front Wheel Drive Shaft

(5) Front Wheel Drive Gear

(6) Shifter Gear

4 Wheel Drive Position

(1) Shift Fork

(2) Shift Arm

(3) Range Gear Shift Lever

(4) Rod

(5) Sub-arm
