TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M40

5. PTO SYSTEM

[1] STRUCTURE

The  independent  PTO  operated  by  hydraulic  clutch  (3)  is  adapted  for  all  models.  PTO  is

"ENGAGED"

  or

"DISENGAGED"

 by operating the PTO switch of the PTO solenoid valve.

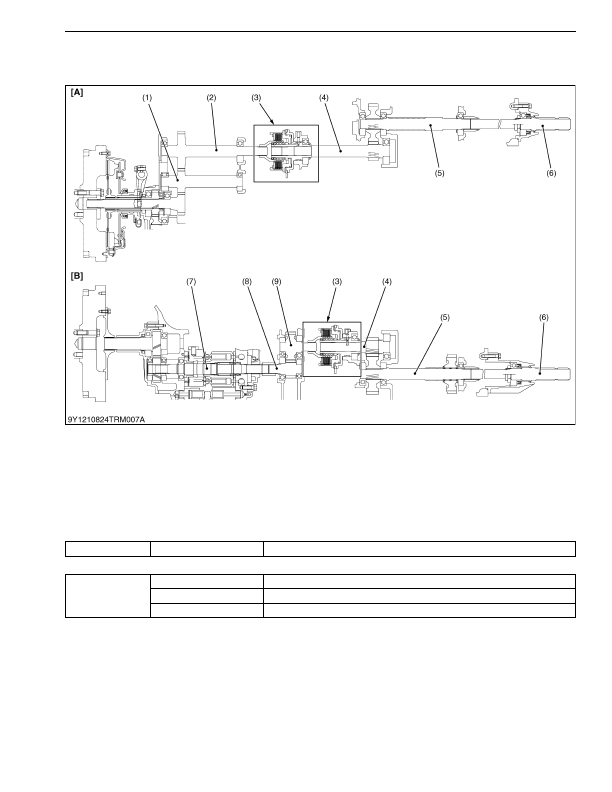

The power train from the clutch to the PTO shaft is shown in figure above.

(Reference)

• PTO speed of each model is as shown in the table below.

Manual Transmission and GST

HST

9Y1210824TRM0047US0

(1) PTO Gear Shaft 1

(2) PTO Gear Shaft 2

(3) PTO Clutch Pack

(4) PTO Counter Shaft

(5) PTO Drive Shaft

(6) PTO Shaft

(7) Output Shaft (Motor Shaft)

(8) PTO Gear Shaft 1

(9) PTO Gear Shaft 2

[A] Manual Transmission and

GST

[B] HST

Rear PTO

All Model

540 min

-1

 (rpm) at 2550 min

-1

 (rpm) engine speed

Rear PTO

L3560

540 min

-1

 (rpm) at 2426 min

-1

 (rpm) engine speed

L4060, L4760

540 min

-1

 (rpm) at 2476 min

-1

 (rpm) engine speed

L5460, L6060

540 min

-1

 (rpm) at 2403 min

-1

 (rpm) engine speed

KiSC issued 03, 2016 A
