TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M41

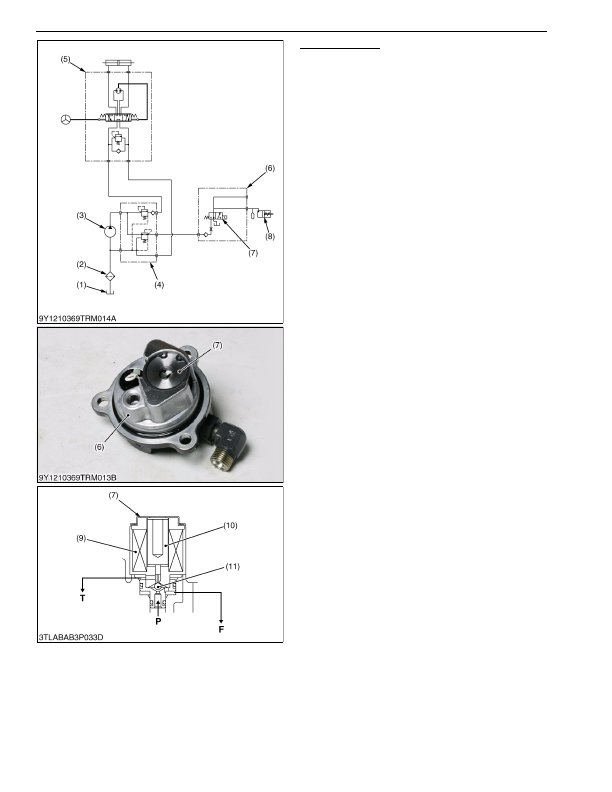

Hydraulic Circuit

The oil from the regulator valve (4) flows into the

PTO clutch solenoid valve (6).

When PTO switch is at

"OFF"

position, the oil flows

is stopped by PTO solenoid valve (6).

When PTO switch is at

"ON"

position, the oil flows

PTO clutch through the PTO solenoid valve and PTO

clutch is engaged.

9Y1210824TRM0048US0

(1) Transmission Case

(2) Oil Filter

(3) Hydraulic Pump

(4) Regulator Valve

(5) Power Steering Controller

(6) PTO Valve Assembly

(7) PTO Solenoid Valve

(8) PTO Clutch

(9) Solenoid

(10) Plunger

(11) Ball

IN Port

To PTO Clutch

Drain Port
