GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-3

2. GENERAL PRECAUTIONS

• When you disassemble, carefully put the parts in a clean area

to make it easy to find the parts. You must install the screws,

bolts and nuts in their initial position to prevent the reassembly

errors.

• When it is necessary to use special tools, use KUBOTA special

tools. Refer to the drawings when you make special tools that

you do not use frequently.

• Before you disassemble or repair machine, make sure that you

always disconnect the ground cable from the battery first.

• Remove oil and dirt from parts before you measure.

• Use only KUBOTA genuine parts for replacement to keep the

machine performance and to make sure of safety.

• You must replace the gaskets and O-rings when you assemble

again. Apply grease

(1)

to new O-rings or oil seals before you

assemble.

• When you assemble the external or internal snap rings, make

sure that the sharp edge

(3)

 faces against the direction from

which force

(2)

is applied.

• When inserting spring pins, their splits must face the direction

from which a force is applied. See the figure on the left side.

• To prevent damage to the hydraulic system, use only specified

fluid or equivalent.

• Clean the parts before you measure them.

• Tighten the fittings to the specified torque. Too much torque can

cause damage to the hydraulic units or the fittings. Not sufficient

torque can cause oil leakage.

• When  you  use  a  new  hose  or  pipe,  tighten  the  nuts  to  the

specified torque. Then loosen (approx. by 45°) and let them be

stable  before  you  tighten  to  the  specified  torque  (This  is  not

applied to the parts with seal tape).

• When you remove the two ends of a pipe, remove the lower end

first.

• Use two pliers in removal and installation. One to hold the stable

side, and the other to turn the side you remove to prevent twists.

• Make sure that the sleeves of flared connectors and tapers of

hoses are free of dust and scratches.

• After  you  tighten  the  fittings,  clean  the  joint  and  apply  the

maximum operation pressure 2 to 3 times to check oil leakage.

WSM000001GEG0106US0

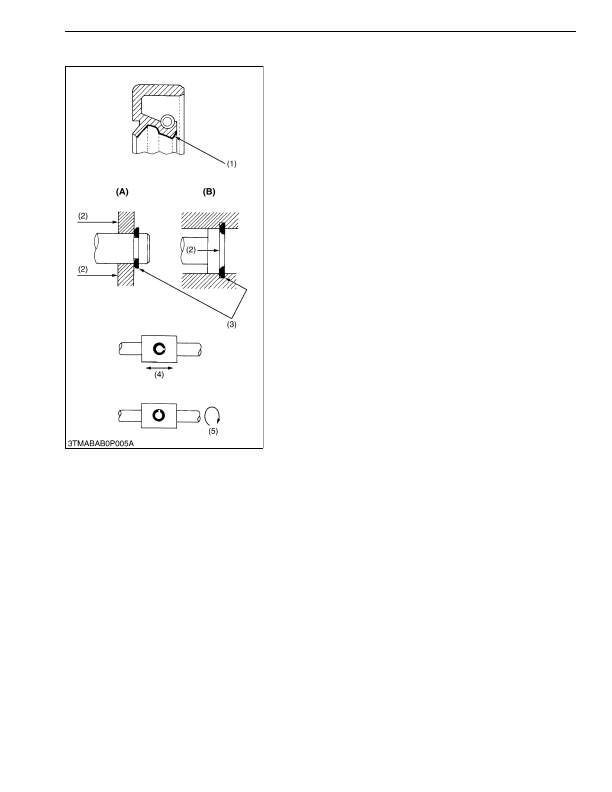

(1) Grease

(2) Force

(3) Sharp Edge

(4) Axial Force

(5) Rotating Movement

(A) External Cir-clip
(B) Internal Cir-clip
